Simplex 4906-9251 Multi-candela addressable Speaker Strobe S/V

$120.00
Availability:
26 in stock
Warranty:
90 Days
Condition:
New
Quantity:
- +

Product Description

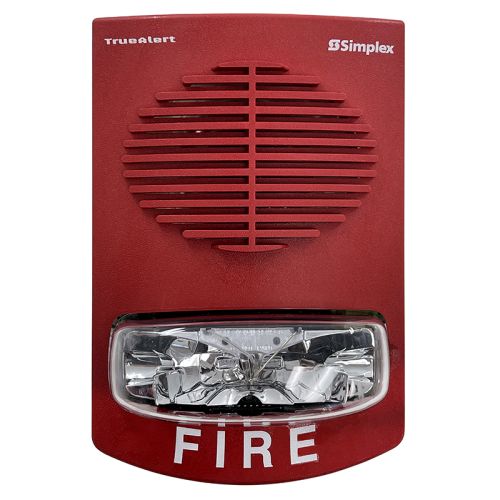

Simplex TrueAlert 4906-9251 is a Multi-Tapped Speaker with Multi-Candela Addressable Strobe; intensity selectable as: 15, 30, 75, or 110cd.

For wall mounting.



Please note: All parts should be installed and tested by a certified fire alarm company.

Questions (4)

What are the electrical specifications for this product?
Answer:
Input Voltage: 25 or 70.7 VRMS,
Power Taps: ¼, ½, 1, and 2 W
Frequency Response: Fire Alarm = 400 to 4000 Hz General Signaling = 125 to 12 kHz
Speaker Output Ratings: @ 10 ft (3 m)
Environmental: 32° to 122° F (0° to 50° C); 10% to 93%, non-condensing at 100° F (38° C)
Connections Terminal: blocks for 18 AWG to 12 AWG (0.82 mm2 to 3.31 mm2 ); two wires per terminal for in/out wiring
What are the features for this product?
Answer:
Multi-candela xenon strobe with synchronized 1 Hz flash rate and with intensity programmable from the control panel or jumper selected as 15, 30, 75, or 110 cd Advanced addressable notification controlled by IDNAC SLCs providing regulated 29 VDC allowing strobes to operate with lower current even under battery backup Wiring supervision to each strobe allowing “T-tapped” connections for Class B circuits to simplify wiring (Class A circuits require in/out wiring) TrueAlert Device Reports at the control panel detailing appliance point ID, custom label, type, and candela setting (see sample on page 2) Magnet test diagnostics to assist checkout and testing of appliances and wiring Compatibility with ADA requirements; (refer to important installation information on page 3) Compatibility with legacy TrueAlert addressable systems for upgrade and replacement (see page 4) Strobe operation is listed to UL 1971 and ULC-S526* LED indicator and magnet test feature: Appliance LED can be selected to display each polling cycle to indicate appliance supervision In diagnostic mode, the magnet test pulses the LED to indicate appliance address AND pulses to indicate the intensity selection; a brief output of the strobe is also selectable to confirm operation Mechanical design features: Rugged, high impact, flame retardant thermoplastic housings are available for wall or ceiling mount Wall mount housings are available in red or white Wall mount options include electrical box adapters, separate covers to convert color, and red wire guards Ceiling mount housing is white Audible notification appliance (speaker): High quality voice and tone reproduction with taps for ¼, ½, 1, or 2 W, at 25 or 70.7 VRMS Speakers have capacitor input for connection to DC supervised NACs and are wired separately from strobes Listed to UL 1480 and ULC S541* Compliant with NFPA 72, 520 Hz Low Frequency Signal Requirements for Sleeping Areas
