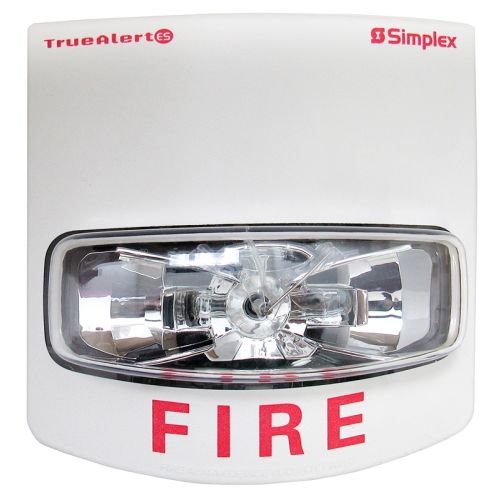

Simplex 49VO-WWF TrueAlert ES Wall Mount Addressable Strobe (White)

The Simplex 49VO-WWF is a whiteTrueAlert ES Wall Mount Addressable Strobe with clear lens, marked FIRE. TrueAlert ES addressable appliances are individually addressed visible notification appliances that receive power, supervision, and control signals from the Simplex fire alarm control panel providing IDNAC Signaling Line Circuits (SLCs). Candela intensity programmable from the control panel or jumper selected as 15, 30, 75, 110, 135, or 185 cd. Typical Operating Voltage Range: 23 VRMS to 31 VRMS. Cover and matching mounting plate included. This product is for use with single gang, double gang, or 4-inch square box, flush or surface mount. Isolator Model 4905-9929 is available for remote mounting on TrueAlert addressable circuits to isolate short circuited wiring from functioning wiring. COMPATIBLE for use with: — 4100ES or 4100U FACPs — 4009 TPS, Remote TrueAlert Power Supply — 4009 IDNAC Repeater — TrueAlert Addressable Controller (4009T)
