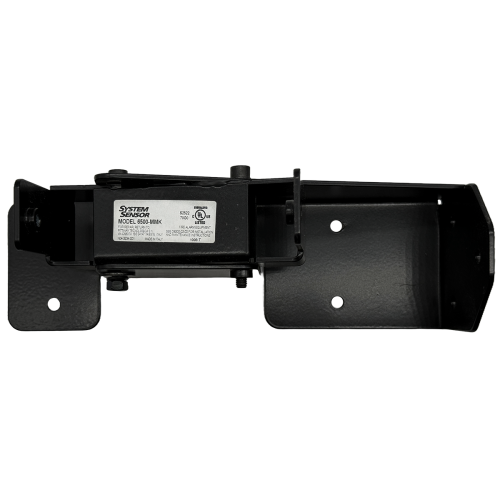

System Sensor 6500-MMK Mounting Kit

The System Sensor 6500-MMK mounting kit is a heavy-duty beam multi-mount bracket for the 6500 range of reflected beam smoke detectors, allowing wall or ceiling installation when the detector and reflector cannot be mounted within the standard 10° alignment of each other. It provides added aiming flexibility to help maintain proper alignment and includes the hardware to mount either one transmitter/receiver unit or one reflector per kit. If both ends need the extra alignment range, two kits are required. Key Specifications: Type: Heavy-duty beam multi-mount bracket kit Core Function(s): Adds additional alignment range and rigid mounting for one beam transmitter/receiver head or one reflector (one per kit) Compatible Accessories: 6500-SMK – Surface mount kit required when using this kit to mount the transmitter/receiver unit Compatible Devices: BEAM1224 – Conventional reflected beam detector head BEAM1224S – Conventional reflected beam detector head with sensitivity test FSB-200 – Addressable reflected beam detector head FSB-200S – Addressable reflected beam detector head with sensitivity test BEAM200 – Beam detector head BEAM200S – Beam detector head with sensitivity test BEAM355 – Beam detector head BEAM355S – Beam detector head with sensitivity test System Compatibility: For use with the 6500 range of System Sensor reflected beam smoke detector installations; this kit is not compatible with the long-range reflector kit.
