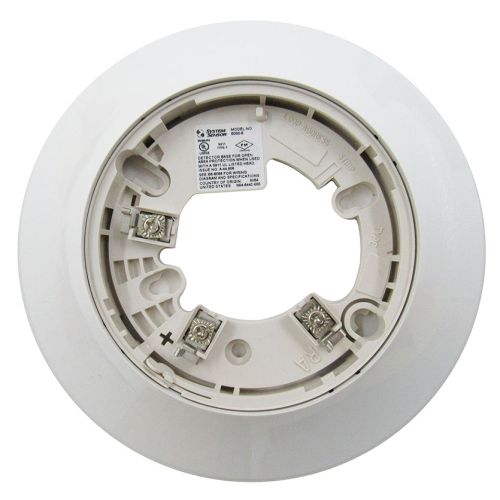

System Sensor B300-6 6-inch Flanged Mounting Base (White)

The System Sensor B300-6 plug-in detector base is a 6-inch, low-profile mounting base for compatible intelligent addressable detector heads, providing simple two-wire loop connections plus terminals for a remote LED annunciator. It uses screw terminals for clean field wiring and supports an optional tamper-resistant feature to help prevent unwanted detector removal. Key Specifications: Type: Intelligent plug-in detector base (6-inch, flanged, low-profile) Core Function(s): Mounting and wiring base that provides (+/–) loop connections and remote annunciator terminals for compatible addressable plug-in detectors Loop/Protocol: Communicates over the power lines (+/–) through the installed detector head (system protocol depends on the detector and panel) Power: 15 to 32 VDC; 170 µA standby Indicators/UI: Decorative trim ring; optional tamper-resist feature; remote annunciator terminals (RA wiring to terminals 1 and 3) Compatible Accessories: RA100Z – Remote LED annunciator (connects to base remote annunciator terminals) System Compatibility: Used with compatible intelligent addressable plug-in detector heads that mount to the B300-6 style base on supported addressable SLC systems.
