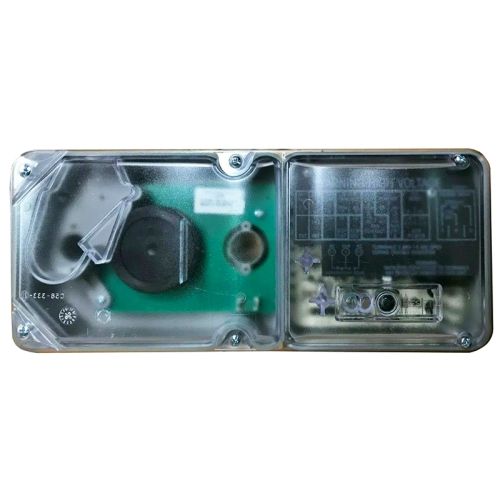

System Sensor DH100ACDCLP Low Flow Duct Smoke Detector

NOTE: This part is discontinued by the manufacturer. Replace with: System Sensor D4120 The System Sensor DH100ACDCLWP is a 4-Wire Low-Flow Duct Smoke Detector. Operating Voltage: 24 VAC/DC or 120/240 VAC operation, High-Low voltage barrier Equipped with two DPDT Form C relay contacts. COMPATIBLE SYSTEM SENSOR PARTS and ACCESSORIES: — A5190 Replacement 4-wire photoelectric detector board — A5064 Replacement 4-wire power board — ST-1.5 Metal sampling tube duct widths 1 ́—2 ́ (0.3—0.6 m) — ST-3 Metal sampling tube duct widths 2 ́—4 ́ (0.6—1.2 m) — ST-5 Metal sampling tube duct widths 4 ́—8 ́ (1.2—2.4 m) — ST-10 Metal sampling tube duct widths 8 ́—12 ́ (2.4—3.7 m) — T80-71-00 Replacement telescoping sampling tube — P48-21-00 End cap for metal sampling tubes — P48-55-00 Replacement end cap for T80-71-00 — S08-39-01 Photo replacement screen — F36-09-11 Replacement air filters (two per package) — M02-04-00 Test magnet — RA400Z Remote annunciator — SSK451 Multi-Signaling accessory — PA400W Mini-Alert sounder — RTS451KEY Remote test station with key lock — PS24LOW Mini-Alert add-on strobe — RTS451 Remote test station — PS12/24SLENSW Wall-mount “SMOKE” lens — APA451 Remote annunciator with piezo alarm
