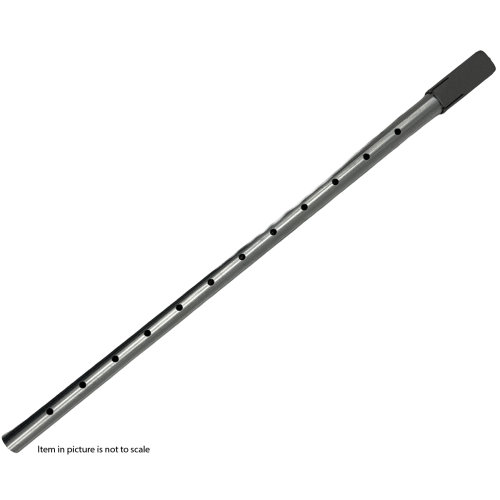

System Sensor DST10 Duct Detector Sampling Tube

The System Sensor DST10 sampling tube is a metal duct detector accessory used with compatible System Sensor duct smoke detectors for duct widths from 8 to 12 feet. It supports proper air sampling inside the duct and uses the same plug-in tube design referenced across the InnovairFlex duct smoke detection line. Key Specifications: Type: Metal sampling tube Core Function(s): Draws air from the duct into a compatible duct smoke detector housing for smoke sampling Duct Width: 8 to 12 feet Mounting: Installs from the front or back of compatible detector housings Construction: Metal tube Compatible Duct Smoke Detectors: D4120 - Conventional 4-wire duct smoke detector D4240 - Conventional 4-wire duct smoke detector DUCTSD - Conventional 4-wire duct smoke detector DUCTSD240 - Conventional 4-wire duct smoke detector D2 - Conventional 2-wire duct smoke detector D4120W - Watertight conventional duct smoke detector DNR - Intelligent non-relay duct smoke detector housing DNRECL - Eclipse series intelligent duct smoke detector housing DNRHS - High sensitivity duct smoke detector DNRW - Watertight intelligent duct smoke detector housing Compatible Accessories: P48-21-00 - End cap for metal sampling tubes ETX - Metal exhaust tube System Compatibility: Compatible with System Sensor conventional and intelligent InnovairFlex duct smoke detector applications that use DST-series sampling tubes. Note: Ships in 2 pcs with included couplings.
