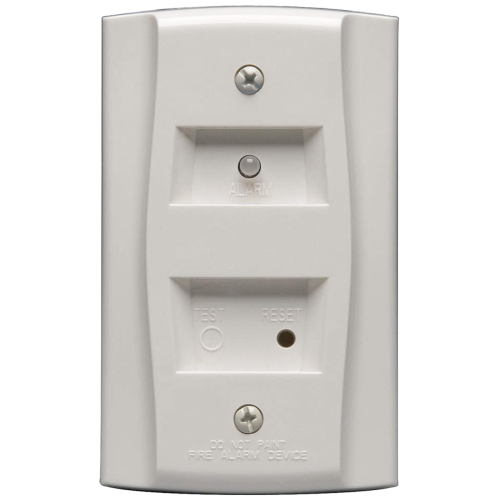

System Sensor RTS151 Remote Test Station

The System Sensor RTS151 remote test station is a duct smoke detector accessory designed to test and reset compatible duct smoke detectors from a convenient, eye-level location. It includes an alarm LED plus dedicated TEST and RESET switches to simplify routine inspections and service calls. Similar product: RTS151KEY – Remote test station with key Key Specifications: Type: Remote test station for duct smoke detectors Core Function(s): Provides remote test and reset control with alarm LED indication for compatible duct smoke detector applications Power: Alarm LED: 2.8 to 32 VDC (12 mA max); total current: 105 mA max Indicators/UI: Alarm LED; test switch 10 VA @ 32 VDC; reset switch 10 VA @ 32 VDC Operating Range: -10°C to 60°C (14°F to 140°F); up to 95% RH non-condensing Wiring: 14 to 18 AWG Compatible Devices: Compatible with System Sensor duct smoke detectors (InnovairFlex line and other System Sensor duct smoke detector applications).
