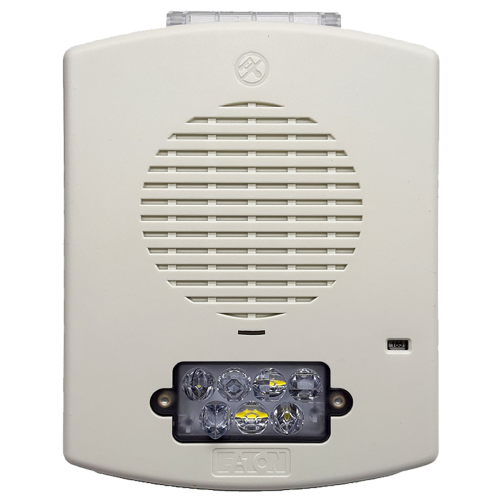

Wheelock EL3RMTST-FW Eluxa Outdoor 3R Multi Tone Horn Strobe

The Wheelock EL3RMTST-FW is an Eluxa outdoor 3R multi-tone LED horn strobe for wall or ceiling notification, combining eight selectable tones with HI or STD volume and a clear-lens multi-candela strobe. It operates on 24 VDC or 24 VFWR NAC circuits and ships from the factory with the outdoor 3R mounting plate for pre-wire and installation. Key Specifications: Type: Outdoor 3R multi-tone LED horn strobe Core Function(s): Eight tones (Horn Bell March Time Code 3 Horn Code 3 Tone Slow Whoop Siren Hi Lo) with HI or STD volume plus multi-candela LED strobe Loop/Protocol: Conventional NAC 24 VDC or 24 VFWR compatible with Wheelock synchronization methods Power: 16.0 to 33.0 VDC/VFWR operating range with strobe candela settings 15 30 75 110 150 185 cd Indicators/UI: Tamper-resistant candela selector with visible setting, tone and volume selection at the device, self-supporting hanging-hinge mounting for pre-wire and install Compatible Backboxes & Accessories: EL3RBB – Outdoor 3R mounting plate (factory included with EL3R models) ELLP-FW – English FIRE letter plate kit System Compatibility: Compatible with FACPs and accessories determined compatible with Wheelock RSS strobe-based products, with synchronization supported when used with Wheelock sync-capable equipment.
