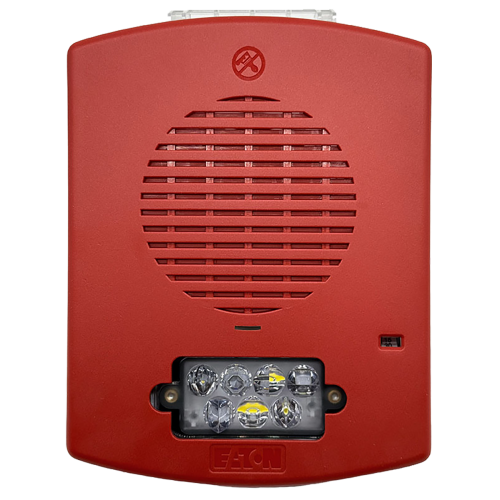

Wheelock EL4XMTST-FR Eluxa Outdoor 4X Multi Tone Horn Strobe

The Wheelock EL4XMTST-FR is an Eluxa outdoor 4X multi-tone LED horn strobe for wall or ceiling notification, providing eight selectable tones with HI or STD volume plus a field-selectable clear strobe rated at 15 30 75 110 150 or 185 cd. It operates on 24 VDC or VFWR NAC circuits and ships from the factory with the 4X surface backbox to achieve NEMA 4X and IP66 performance for indoor or outdoor installs. Key Specifications: Type: Outdoor multi-tone LED horn strobe NEMA 4X red FIRE clear lens Core Function(s): Eight tones (Horn Bell March Time Code 3 Horn Code 3 Tone Slow Whoop Siren Hi Lo) with HI or STD volume plus multi-candela LED strobe Loop/Protocol: Conventional NAC 24 VDC or 24 VFWR compatible with Wheelock sync protocol using DSM modules or Wheelock power supplies Power: 16 to 33 VDC/VFWR operating range strobe selectable 15 30 75 110 150 185 cd Indicators/UI: Tamper resistant candela selector with visible setting tone and volume selections at the device Compatible Backboxes & Accessories: EL4XBB-R – Red NEMA 4X surface backbox (factory included) ELLP-FR – Red FIRE letter plate kit System Compatibility: Compatible with FACPs and accessories approved for Wheelock RSS strobe-based products and Wheelock Eluxa and Exceder LED3 notification appliances.
