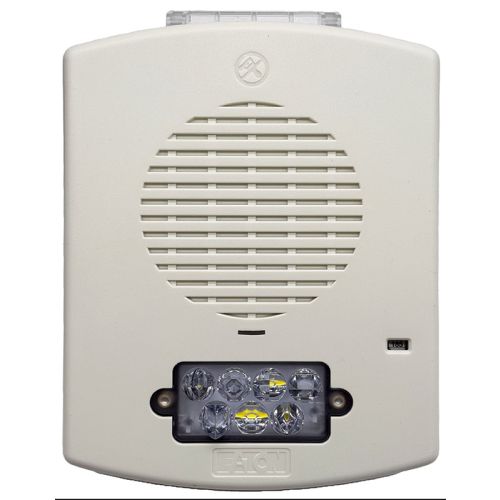

Wheelock EL4XMTST-FW Eaton Multitone Strobe (White)

The Wheelock EL4XMTST-FW is an Eluxa outdoor 4X multi-tone LED horn strobe supplied with a matching white NEMA 4X surface backbox. It provides selectable multi-tone audible output and clear lens visual signaling on 24 VDC or VFWR NAC circuits with six field selectable candela settings from 15 to 185 cd. High efficiency LED and multi-tone electronics allow one device to cover a wide range of outdoor wall or ceiling applications. Key Specifications: Type: Eluxa outdoor multi-tone LED horn strobe, NEMA 4X assembly, white housing with FIRE lettering, clear lens Core Function(s): Audible and visual notification with eight selectable tones (Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, Hi/Lo) and selectable high or standard dBA output plus multi-candela strobe Loop/Protocol: Conventional 24 VDC or 24 VFWR notification appliance circuits; compatible with Wheelock synchronization modules and power supplies Power: 16 to 33 VDC/FWR operating range; six field selectable candela settings of 15, 30, 75, 110, 150, and 185 cd with low current LED design Indicators/UI: Tamper resistant candela selector, tone and volume settings accessible at the device; 4-wire connection for horn and strobe control Environmental: Indoor or outdoor use, NEMA Type 4X and IP66 when installed with the included 4X backbox; −40 °C to 66 °C operating range Compatible Backboxes & Accessories: EL4XBB-W – White NEMA 4X surface backbox for Eluxa 4X white multi-tone horn strobe models (factory included with EL4XMTST-FW; also available as a replacement) System Compatibility: Compatible with fire alarm control panels and accessories approved for Wheelock Eluxa, Exceder LED3, and RSS strobe based products using Wheelock synchronization.
