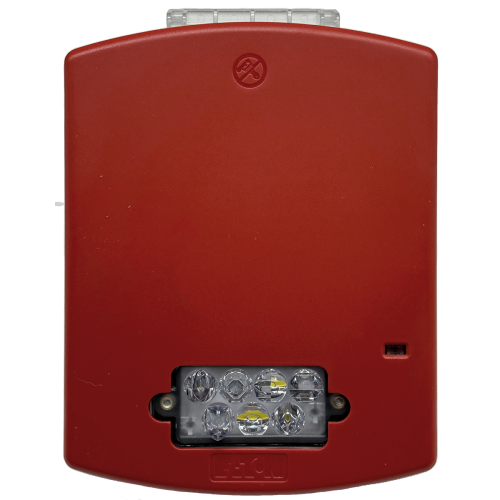

Wheelock EL4XST-FR Eluxa Outdoor 4X LED Strobe

The Wheelock EL4XST-FR is an Eluxa outdoor 4X LED strobe for wall or ceiling notification on 24 VDC or 24 VFWR NAC circuits, providing six field-selectable candela settings from 15 to 185 cd. It ships from the factory with the red NEMA 4X surface backbox for indoor or outdoor installations where a weatherproof assembly is required. Key Specifications: Type: Outdoor LED strobe (NEMA 4X) Core Function(s): Visual fire notification with multi-candela LED strobe output (clear lens) Loop/Protocol: Conventional 24 VDC or 24 VFWR NAC, compatible with Wheelock synchronization methods Power: 16.0 to 33.0 VDC/FWR; candela settings 15, 30, 75, 110, 150, 185 cd Indicators/UI: Tamper-resistant candela selector with visible setting; 1 Hz flash rate Compatible Backboxes & Accessories: EL4XBB-R – Red NEMA 4X surface backbox (factory included with EL4X models) ELLP-FR – English FIRE letter plate kit System Compatibility: Compatible with Fire Alarm Control Panels and accessories determined compatible with Wheelock RSS strobe-based products, including Eluxa and Exceder LED3 families.
