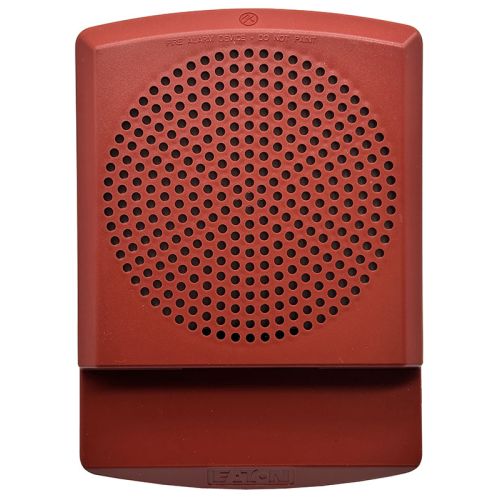

Wheelock ELCHR Eluxa Wall Chime

The Wheelock ELCHR is an Eluxa electronic chime for indoor notification on 24 VDC or 24 VFWR circuits. It provides an 890 Hz tone with field selectable 1 Hz, 2 Hz, Coded, and Temporal 3 (T3) operating modes plus adjustable volume. A mounting plate with capture hinge is included for pre wire, pre test, and single screw final installation. Key Specifications: Type: Electronic chime indoor wall mount red Core Function(s): 890 Hz chime with selectable 1 Hz 2 Hz Coded or T3 modes and adjustable volume Loop/Protocol: Conventional NAC wiring with optional synchronization using Wheelock sync when set to T3 Power: 24 VDC or 24 VFWR 16.0 to 33.0 V operating range Indicators/UI: Built in level adjustment snap on grille cover mounting plate with capture hinge IN OUT screw terminals for 12 to 18 AWG Compatible Backboxes & Accessories: ELSPKBB-R – Red wall backbox for Eluxa wall chimes and chime strobes System Compatibility: Listed as compatible with FACPs and accessories determined compatible with Exceder LED3 and Wheelock RSS strobe based products.
