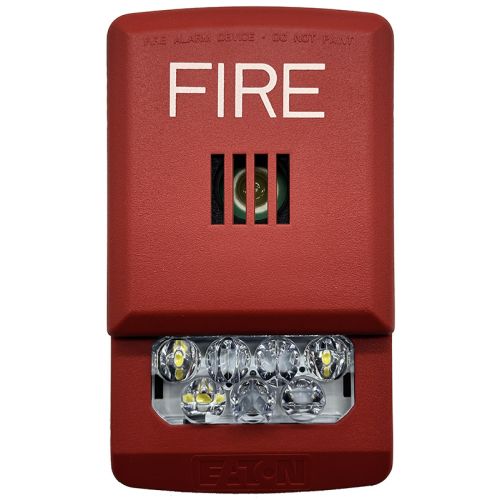

Wheelock ELHSR Eluxa LED Horn Strobe

The Wheelock ELHSR is an Eluxa LED horn strobe for indoor wall notification, providing audible and visual “FIRE” signaling in a compact red form factor. It offers three field selectable horn patterns, high or low dBA output, and six selectable candela settings from 15 to 185 cd. High efficiency LED technology reduces current draw on 24 VDC or VFWR NAC circuits. Key Specifications: Type: Eluxa LED horn strobe, wall mount, red housing with FIRE lettering Core Function(s): Audible and visual fire notification with three horn patterns (Continuous, T3, T3/T4) and selectable high or low dBA output with multi candela strobe Loop/Protocol: Conventional 24 VDC or 24 VFWR notification appliance circuits, compatible with Wheelock synchronization methods Power: Regulated 24 VDC/VFWR, 16.0 to 33.0 V, with six field selectable wall candela settings of 15, 30, 75, 110, 135, and 185 cd and low current LED design Indicators/UI: Front candela indicator with slide switch, horn pattern and volume slide switches, low profile lens and faceplate with no visible mounting screws Compatible Backboxes & Accessories: ELSBB-R – Red LED wall backbox for Eluxa red wall models ESB-KIT-R – Red trim plate kit for Eluxa wall appliances System Compatibility: Compatible with fire alarm control panels and accessories approved for Wheelock Exceder LED3 and Wheelock RSS strobe based products using Wheelock patented synchronization.
