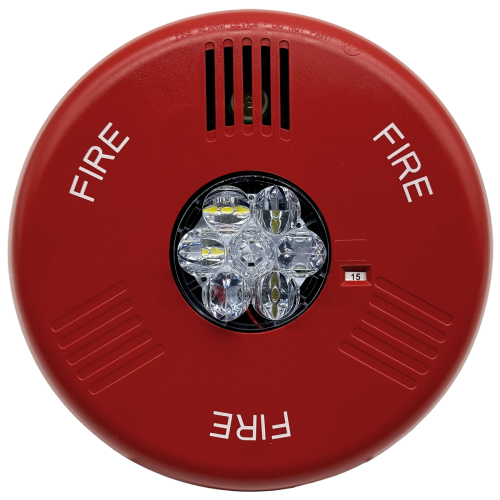

Wheelock ELHSRC Eluxa LED Ceiling Horn Strobe

The Wheelock ELHSRC is an Eluxa LED ceiling horn strobe for indoor fire notification on 24 VDC or 24 VFWR NAC circuits. It combines three selectable horn patterns with high or low output and a multi-candela clear strobe with six selectable ceiling settings. Key Specifications: Type: LED ceiling horn strobe Core Function(s): Audible and visual fire notification with selectable horn pattern and multi-candela LED strobe Loop/Protocol: Conventional 24 VDC or 24 VFWR NAC, Wheelock synchronization compatible Power: 16.0 to 33.0 VDC/VFWR; ceiling candela settings 15 30 75 110 150 177 cd Indicators/UI: Horn patterns Continuous T3 T3 T4 with high or low output (Low 86 dBA High 91 dBA); tamper-resistant candela selector with visible setting; finger slide switches no tools Compatible Backboxes & Accessories: LSPKBB-CR – Red ceiling backbox for Eluxa ceiling horn strobes and strobes System Compatibility: Compatible with Fire Alarm Control Panels and accessories determined compatible with Wheelock Eluxa and Exceder LED3 and Wheelock RSS strobe-based products using Wheelock synchronization.
