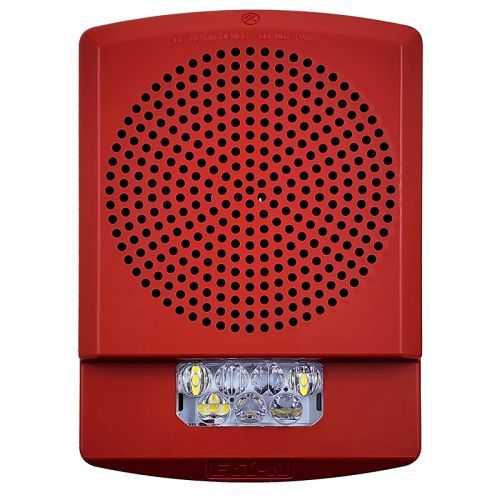

Wheelock ELMTSR Eluxa Multitone Horn Strobe

The Wheelock ELMTSR is an Eluxa LED multitone horn strobe for indoor wall notification, providing eight selectable alarm tones, six field selectable candela settings, and low profile modern styling. It uses high efficiency LED technology to deliver very low current draw across its 15 to 185 cd range, helping reduce NAC power supply counts and wire size. Separate terminals let the horn and strobe run on a single NAC or on two circuits for flexible system design. Key Specifications: Type: Eluxa LED multitone horn strobe, wall mount, red housing with FIRE lettering Core Function(s): Provides eight field selectable tones including Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, and Hi Lo with synchronized LED strobe output Loop/Protocol: Conventional 24 VDC or 24 VFWR notification appliance circuits, selectable Standard or High dBA output, Wheelock synchronization capable Power: Regulated 24 VDC range 16.0 to 33.0 V, selectable 15, 30, 75, 110, 135, or 185 cd with low LED current draw at each setting Indicators/UI: Front candela window with slide switch, multitone DIP switch, built in level adjustment, snap on grille cover, red FIRE marking on faceplate Compatible Backboxes & Accessories: ELSPKBB-R – Red wall backbox for Eluxa wall mount devices System Compatibility: Compatible with fire alarm control panels and accessories that support Wheelock Exceder LED3 and RSS strobe based products using Wheelock patented sync protocol.
