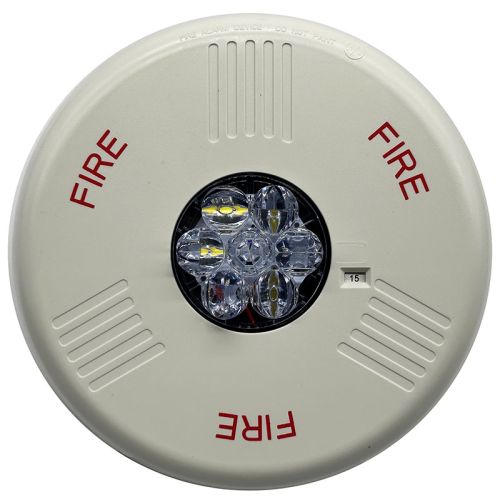

Wheelock ELSTWC Eluxa LED Ceiling Strobe

The Wheelock ELSTWC is an Eluxa LED ceiling strobe for indoor fire notification, providing clear lens FIRE signaling on 24 VDC or VFWR NAC circuits. It offers six field selectable ceiling candela settings from 15 to 177 cd using high efficiency LED technology to keep current draw low. A ceiling mounting plate with capture hinge is included for pre wire and pre test before final installation. Key Specifications: Type: Eluxa LED ceiling strobe, white housing with FIRE lettering Core Function(s): Visual fire notification with multi candela LED strobe output Loop/Protocol: Conventional 24 VDC or 24 VFWR notification appliance circuits, compatible with Wheelock synchronization methods Power: Regulated 24 VDC/VFWR, 16.0 to 33.0 V, with six selectable ceiling candela settings of 15, 30, 75, 110, 150, and 177 cd Indicators/UI: Front candela indicator with tamper resistant slide switch, 1 Hz flash rate Environmental: Indoor use, operating range 32 °F to 122 °F (0 °C to 50 °C) Compatible Backboxes & Accessories: LSPKBB-CW – White ceiling backbox for Eluxa ceiling strobes and speakers System Compatibility: Compatible with fire alarm control panels and accessories approved for Wheelock Eluxa, Exceder LED3 and RSS strobe based products using Wheelock synchronization.
