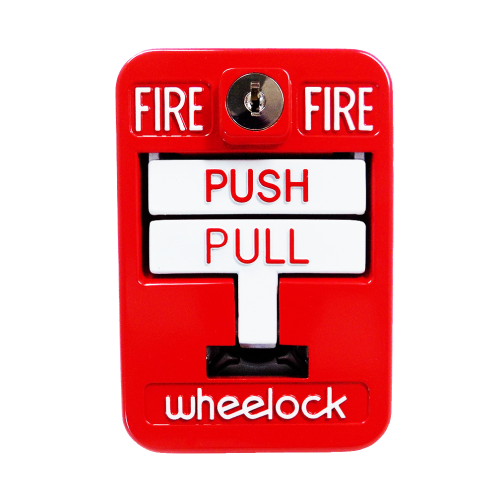

Wheelock MPS-200 Dual-Action Pull Station

The Wheelock MPS-200 is a non-coded, double-action manual pull station with SPST contacts and terminal strip wiring, built in a rugged die-cast metal housing for long-term reliability. It features corrosion-resistant gold-plated contacts, a high-gloss red finish with raised white lettering, and a key-reset lock to prevent unauthorized reset. Key Specifications: Type: Double-action, non-coded manual pull station (SPST) Core Function(s): Manual fire alarm initiation; handle locks down for high visibility and resets by key Contacts: Normally open SPST; rated 30 VDC @ 1A and/or 120 VAC @ 1A; gold plated for corrosion resistance Wiring: Terminal strip connections Construction: Die-cast metal; high-gloss red enamel with raised white lettering; plastic breakrod Compatible Accessories: MPS-ISB – Interior surface backbox MPS-WP – Weatherproof backbox with gasket assembly MPS-RODS – Scored acrylic breakrods (dozen) System Compatibility: Compatible with conventional initiating device circuits that accept dry-contact pull stations. Alternate Part Number: 8401
