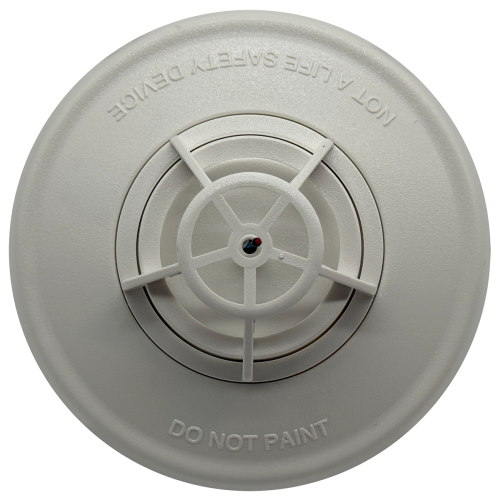

AutoCall A4098-9733 TrueAlarm Heat Sensor

The AutoCall A4098-9733 is an intelligent addressable heat sensor for AutoCall IDNet systems, providing rate-compensated fixed temperature detection with optional rate-of-rise operation. It is designed for use with compatible TrueAlarm sensor bases and gives you analog temperature sensing, programmable alarm thresholds, and utility temperature monitoring for freeze warning or HVAC-related applications. Key Specifications: Type: Intelligent addressable heat sensor Core Function(s): Provides rate-compensated fixed temperature sensing with optional rate-of-rise detection Loop/Protocol: IDNet analog communications Sensing: Programmable fixed temperature operation at 135 F or 155 F with selectable 15 F or 20 F per minute rate-of-rise Power: Powered through the compatible IDNet sensor base; one address per base Indicators/UI: Base LED pulses for communications and turns steady on for alarm or trouble Operating Range: 32 to 100 F on standard base applications Humidity Range: 10% to 95% RH Compatible Bases & Accessories: A4098-9792 - Standard sensor base A4098-9789 - Sensor base with remote LED or unsupervised relay connections A2098-9808 - Remote red LED alarm indicator> 4098-9832 - Adapter plate for surface or semi-flush mounting System Compatibility: Compatible with AutoCall IDNet systems using TrueAlarm analog sensor bases that accept the A4098-9733 heat sensor
