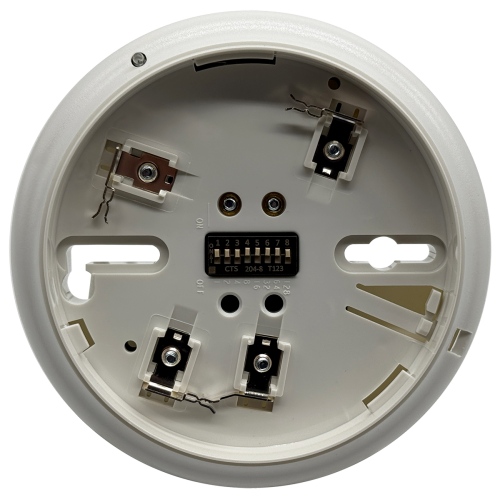

AutoCall A4098-9792 TrueAlarm Sensor Base

The AutoCall A4098-9792 is a standard TrueAlarm sensor base for AutoCall IDNet systems. It provides the addressable mounting platform for compatible analog smoke and heat sensor heads, with base-mounted address selection, an integral LED, and support for ceiling or wall installation on standard electrical boxes. Key Specifications: Type: Standard addressable sensor base Core Function(s): Provides mounting, addressing, and status indication for compatible TrueAlarm analog sensor heads Loop/Protocol: IDNet; one address for each base Power: Powered by IDNet communications Indicators/UI: Integral red LED pulses for communications and turns steady on for alarm or trouble Wiring: Screw terminals for in/out wiring, 18 to 14 AWG Mounting: 4-inch octagonal box, 4-inch square box, or single-gang box Operating Range: 15 to 122 F with A4098-9714; 32 to 122 F with A4098-9733 Humidity Range: 10% to 95% RH Compatible Sensors & Accessories: A4098-9714 - TrueAlarm photoelectric smoke sensor head A4098-9733 - TrueAlarm heat sensor head A4098-9734 - TrueAlarm high temperature heat sensor head 4098-9832 - Adapter plate for surface or semi-flush mounting System Compatibility: Compatible with AutoCall IDNet systems using TrueAlarm analog sensor bases and sensor heads
