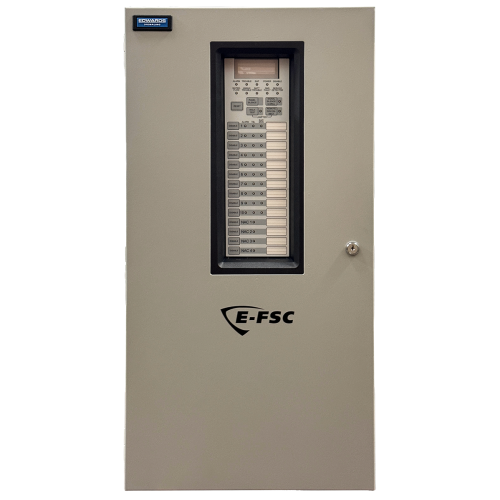

Edwards E-FSC1004G (10-Zone FACP) in Gray Cabinet

The Edwards E-FSC1004G is a conventional fire alarm control panel supporting up to 10 Class B initiating-device circuits (IDCs) or 5 Class A IDCs when circuit pairs are converted. It provides four Class B notification appliance circuits (NACs) rated at 2.0 A each for a 3.5 A system total and can be reconfigured as two Class A NACs. A built-in 4.25 A power supply can be upgraded to 7.5 A, and the NAC load doubled to 7 A with the optional F-XTR120 expander transformer. Model Variants: E-FSC1004G = Gray cabinet (no communicator) E-FSC1004GD = Gray cabinet with factory-installed F-DACT communicator E-FSC1004R = Red cabinet (no communicator) E-FSC1004RD = Red cabinet with factory-installed F-DACT communicator Key Specifications: Type: Conventional FACP Zone Capacity: 10 Class B or 5 Class A IDCs NAC Circuits: 4 Class B or 2 Class A, 2.0 A per circuit, 3.5 A total (7 A with F-XTR120) Power: 120 VAC input, 24 VDC 4.25 A supply (expandable to 7.5 A) System Output: 3.5 A total NAC/Aux (7 A with transformer) Battery Support: Up to two 24 Ah sealed lead-acid batteries (18 Ah fit in cabinet) Dialer/Communicator: Optional F-DACT digital communicator (factory or field install) Compatible Modules & Accessories: Expander Transformer – F-XTR120 Digital Communicator – F-DACT Remote Annunciators – FSRSI, FSRZI-A, FSRZI-SA, FSRA10, FSRA10C Remote Relay Module – FSRRM24 Universal Input Module – FSUIM City-Tie Module – CTM Reverse Polarity Module – RPM Multi-Function Cabinet – MFC-A Compatible Detectors & Devices: Compatible with 2M, SC, 2400, 500, and 700 Series detectors.
