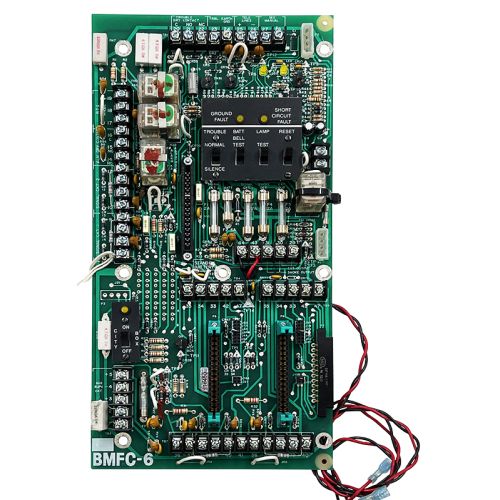

Gamewell FCI BMFC-6 Basic Master Fire Card for FC-72 (FACP)
$1,200.00
The FCI BMFC-6 Basic Master Fire Card provides all of the signaling and supervisory functions of the FC-72 series fire alarm control panel.
(The complete FC-72 package contains one BMFC-6, one PS-6, one ZDM and one BCM-6, TCM-6, or CCM-6.)
Expandable up to a maximum of 64 zones.
COMPATIBLE MODULES and ACCESSORIES:
— ZMC-6 Zone Master/Mother Card is used to add additional zones.
— ZDM01 Single Zone Detection Module
— ZDMD01 Dual Zone Detection Module
— BCM-6, Bell Card Module - Provides a continuous, non-coded output on the notification appliance circuits.
— TCM-6, Temporal Coder Module - Provides a Temporal Pattern Emergency Evacuation Signal per ANSI S3.41
— BMC-6, Master Coder Module - Provides an adjustable on-off duty cycle (march time pattern).
— CCM-6, Common Coder Module - Provides a variety of common coded signals, programmable in the field.
NOTE: For an equivalent part, see FCI BMFC-5
-
-
-
-
