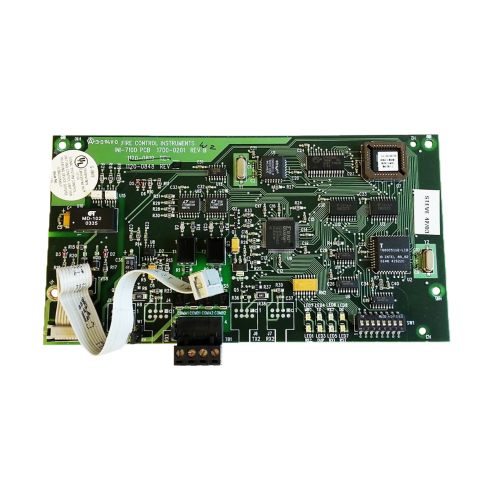

Gamewell FCI INI-7100-UTP Intelligent Network Interface Module

The INI-7100 Intelligent Network Interface Module provides a system that allows you to create a powerful and highly reliable peer-to-peer, token ring, regenerative network of up to sixty-four 7100 series Fire Alarm Control Panels. The network can be configured as Style 4, 6, or 7. The INI-7100-UTP uses conventional 16 or 18 AWG, twisted, non-shielded copper wire to connect between two (2) nodes. Distances between nodes can be up to 3,000 feet (914.4 m). Each INI-7100-UTP regenerates the signal to extend the network another 3,000 feet (914.4 m). Mounts inside the 7100 Series Fire Alarm Control Panel cabinets.
