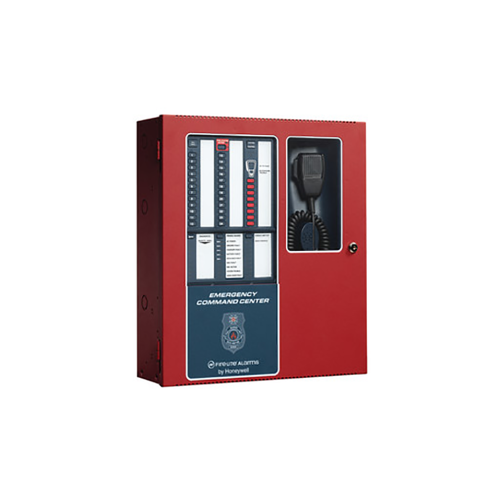

Fire-Lite ECC-50/100 Emergency Command Center (with cabinet)

The Fire-Lite ECC-50/100 is a fire voice-evacuation and mass-notification control panel supplied in a surface-mount steel cabinet. It includes one supervised Style Y/Z speaker circuit powered by a 25 Vrms, 50-watt amplifier and stores 14 field-programmable digital messages (up to 60 s each) with selectable pre- and post-announce tones. Core functions are an integral supervised microphone, a 2.0 A synchronized NAC output, three Form C status relays, 500 mA of 24 V auxiliary power, and laptop programming via built-in USB/web utility. System capacity can expand to 100 W and eight speaker circuits by adding optional ECC-50W and ECC-CE6 modules. A switch-mode supply accepts 120 VAC at 3.5 A, and the charger supports two 18 Ah batteries in the cabinet (26 Ah charging capacity). Key Specifications: Type: Emergency voice-evacuation & mass-notification control panel Built-in Audio Power: 50 W at 25 Vrms (single speaker circuit) Expandable Audio Power: 100 W with second 50 W amplifier or 70 V option Speaker Circuits: 1 built-in; expandable to 2 or 8 (with ECC-50W and ECC-CE6) Digital Messages: 14 recordable, up to 60 s each, with tone generators Command Inputs: 8 circuits (two selectable for NAC reverse-polarity activation) NAC Output: 24 V DC, 2.0 A, sync for System Sensor, Wheelock, or Gentex devices Auxiliary Power: 500 mA, 24 V DC (special application) Relays: AC loss, system trouble, MNS active (Form C) Programming: On-board web utility via USB—no external software required Primary Power: 120 VAC, 60 Hz, 3.5 A (switch-mode) Battery Support: Charges up to 26 Ah; cabinet fits two 18 Ah batteries Compatible Modules & Accessories: ECC-CE6 – Six-zone speaker expander ECC-50W-25V – 25 V 50 W auxiliary/backup amplifier ECC-50W-70V – 70 V 50 W auxiliary/backup amplifier ECC-XRM-70V – 70 V transformer for primary amplifier ECC-LOC – Local operator console ECC-RPU – Remote page unit ECC-RM – Remote microphone station ECC-50DA – 50 W distributed amplifier ECC-125DA – 125 W distributed amplifier ECC-50BDA – 50/100 W distributed amplifier with backup ECC-FFT – Fire-fighter telephone system SEISKIT-COMMENC – Seismic mounting kit and battery bracket TR-CE – Semi-flush trim ring ECC-MICROPHONE – Replacement microphone
