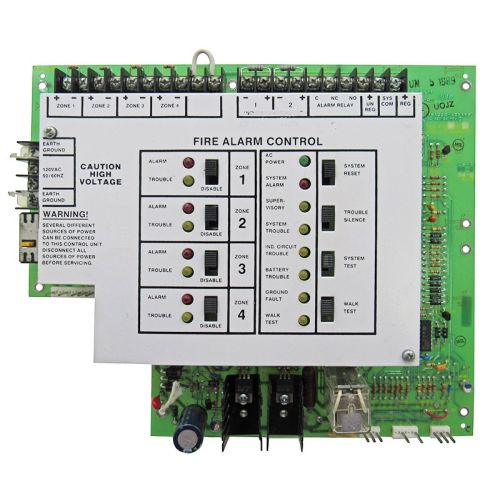

Fire-Lite MS-4012 (4-Zone FACP) Replacement Board

This is the Replacement Board for a MS-4012 4-Zone Control Panel. Fire-Lite's MS-4012 fire alarm control panel is designed for 12-volt (nominal) devices. Activation of any compatible two wire detector or any normally open initiating device will sound audible devices, annunciate a fire zone, trip a municipal box, notify a remote station and activate supplementary relay(s). COMPATIBLE OPTIONAL MODULES: —Transmitter Module (4012TM) with reverse polarity alarm and trouble outputs, supervised output for local energy type municipal box, and transmitter disable switch with indicator. —General Alarm and Trouble Module (4012AT) that provides one Form-C general alarm contact with disable switch and one Form-C dry trouble contact with visual trouble indicator. —Zone Relay Module (4012ZR) that provides Form-C dry alarm contact by zone, Form-A general alarm contact and one Form-C trouble contact. —LED Annunciator Interface Module (4012Ll) for use with a supervised remote zone annunciator (RZA-4).
