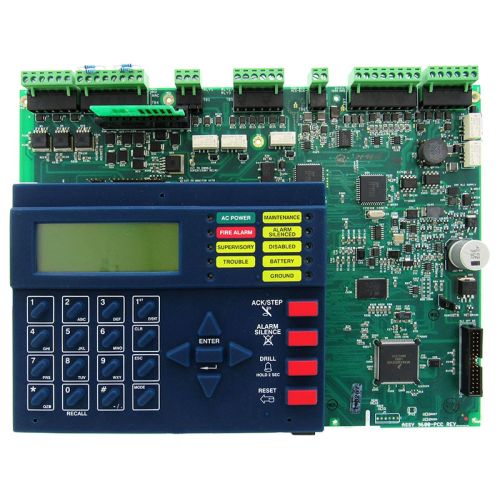

Fire-Lite MS-9600LS Replacement Board (Intelligent FACP)

This is the Replacement Board for the Fire-Lite MS-9600LS 318-point addressable fire alarm control panel with optional Digital Alarm Communicator/Transmitter (DACT-UD2) and expandable to 636 addressable points. Supports an optional second Signaling Line Circuit (SLC-2LS). FEATURESand SPECS: — Up to 159 detectors and 159 control/monitor modules (total of 318 devices) per SLC (636 with SLC-2LS option card) — Uses PS-Tools programming utility — LiteSpeed protocol for SLC communication polls 10 devices at a time and operates on standard, unshielded wire — Auto programmable function — Advanced Fire Technology includes sensitivity testing and automatic drift compensation — 7 amps of power distributed across 4 NAC circuits with onboard Sync Select for System Sensor®, Gentex® , or Wheelock® devices
