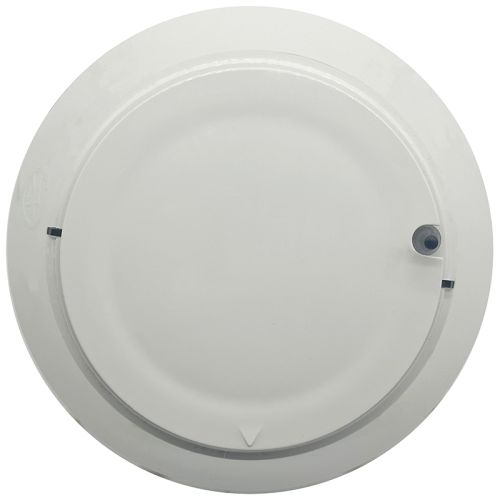

Fire-Lite SD365CO Multi-Criteria Fire/CO Detector (White)

SD365CO is a plug-in, addressable device that provides both fire and carbon monoxide (CO) detection. Utilizes Light Speed Communications Protocol. B200S series intelligent sounder bases are recommended for use with SD365CO. These bases can generate either a Temp 3 pattern for fire or a Temp 4 pattern for CO alarm indication. The B200S series bases recognize the System Sensor synchronization protocol, for use as a component of the general evacuation signal along with other System Sensor horns, horn strobes, and chimes when connected to a power supply or Fire Alarm Control Panel (FACP) output capable of generating the System Sensor synchronization pulses. COMPATIBLE BASES and ACCESSORIES: — B300-6: White, standard flanged low-profile mounting base — B501-WHITE: White, standard European flangeless mounting base — B200S-WH: White, Intelligent, programmable sounder base — B200SR-WH: White, Intelligent sounder base for retrofit applications — B200S-LF-WH: White, Low Frequency Intelligent, programmable sounder base — B200SR-LF-WH: White, Low Frequency Intelligent sounder base for retrofit applications — B224RB-WH: White, plug-in System Sensor relay base — B224BI-WH: White, plug-in System Sensor isolator detector base — TR300: White, replacement flange for B210LP or B300-6 bases — RA100Z(A): Remote 3–32VDC LED annunciator, mounts to a U.S. single-gang electrical box, for use with B501 and B300-6 bases.
