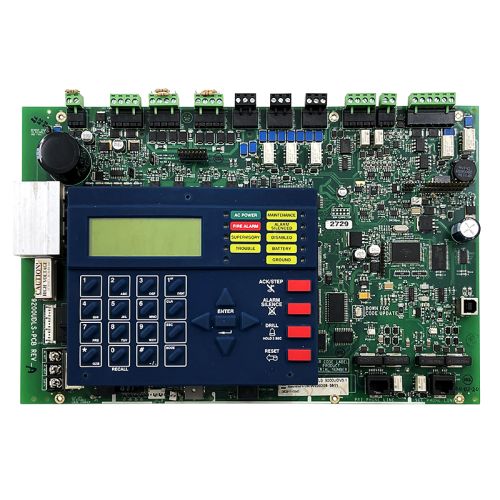

Fire-Lite Unimode 200UDLS (Intelligent FACP) Replacement Board

This is the Replacement Board for the Fire-Lite Unimode 200UDLS Intelligent Addressable FACP with Built-In Communicator. The Unimode 200UDLS is a 198-point addressable Fire Alarm Control Panel, one SLC loop. Includes 80-character LCD display, single printed circuit board mounted on chassis, and cabinet. 120 VAC operation. Features four onboard NACs with additional NAC capability using output control modules (CMF-300 or CMF-300-6). The four Class B NACs can be converted to four Class A NACs with optional ZNAC-92 converter module. SLC LOOP — SLC can be configured for NFPA Style 4, 6, or 7 operation. — SLC supports up to 198 addressable devices per loop (99 detectors and 99 monitor, control, or relay modules). ANNUNCIATORS — TIS-ANN-80: LCD Annunciator is a remote LCD annunciator that mimics the information displayed on the FACP LCD display. — ANN-LED: Annunciator Module provides three LEDs for each zone: Alarm, Trouble and Supervisory. Ships with red enclosure. — ANN-RLED: Provides alarm (red) indicators for up to 30 input zones or addressable points. . — ANN-RLY: Relay Module, which can be mounted inside the cabinet, provides 10 programmable Form-C relays. — ROME: Relay Option Module Enclosure. Provides one ANNRLY Relay Module already installed. The ROME Series provides mounting space for one additional Relay Module or one addressable Multi-module. — ACM-8RF: Relay module provides 8 Form-C 5.0 amp relays. — ACS LED Zone Series: LED-type fire annunciators capable of providing up to 99 software zones of annunciation. Available in increments of 16 or 32 points to meet a variety of applications. — LDM Graphic Series: Lamp Driver Module series for use with custom graphic annunciators.
