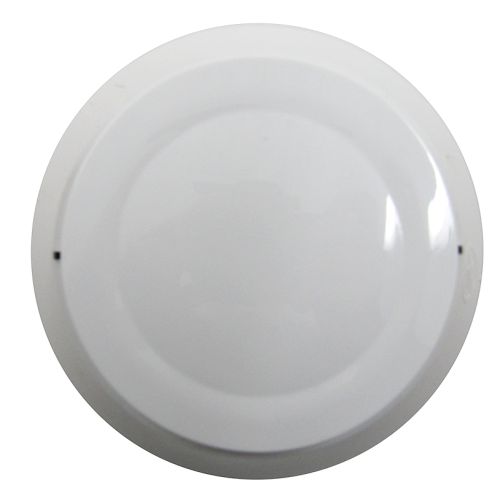

Gamewell FCI ASD-PL3 Photolectric Smoke Detector (White)

The Gamewell FCI ASD-PL3 is a Velociti Series 3 intelligent addressable photoelectric smoke detector. It has a re-designed optical sensing chamber engineered to sense smoke produced by a wide range of combustion sources, and point ID rotary address switches (01–159) for exact device location. This model is a Velociti-only device, with panel-programmable sensitivity and a built-in magnet test switch. Key Specifications: Type: Intelligent addressable photoelectric smoke detector Core Function(s): Provides addressable photoelectric smoke detection with panel-programmable sensitivity. Loop/Protocol: Velociti (SLC); Velociti-only device Power: 15 to 32 VDC from SLC; 200 uA standby at 24 VDC; 2 mA max alarm at 24 VDC (red LED enabled); 4.5 mA max current at 24 VDC (amber LED enabled) Indicators/UI: Dual LEDs for 360° visibility; address set by rotary address switches (01–159); built-in functional test switch activated by external magnet Compatible Bases & Accessories: B300-6 – Bright White, 6-inch flanged low-profile mounting base B501-WH – Bright White, 4-inch flangeless mounting base B200S-WH – Bright White, intelligent addressable sounder base B224BI-WH – Bright White, isolator base B224RB-WH – Bright White, relay base RA100Z – Remote LED annunciator, 3 to 32 VDC (for use with B501 and B300-6) TR300 – Accessory flange ring for B300-6 base, bright white System Compatibility: Works with E3 Series and S3 Series intelligent fire alarm control panels that support Velociti protocol on the SLC loop.
