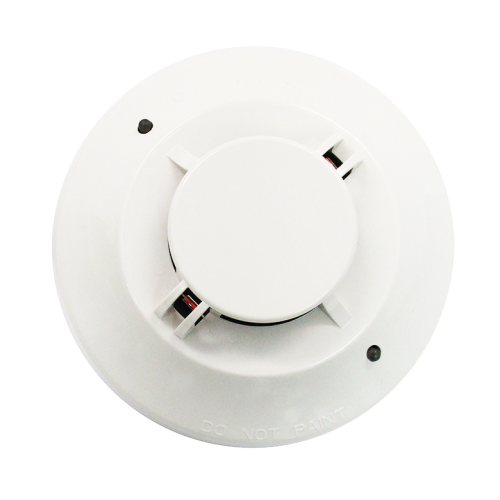

Gamewell FCI ASD-PTL2F Photoelectric Smoke w/ Thermal Sensor

NOTE: This part is discontinued by the manufacturer. Replace with: ASD-PTL3-IV. The Gamewell ASD-PTL2F is an analog, addressable photoelectronic smoke sensor with fixed temp thermal 135°F (57°C) sensing. Visual rotary, decimal switch addressing (01-159) Built-in functional test switch activated by an external magnet Compatible with Gamewell FCI analog addressable panels. Part of the Velociti Series from Gamewell FCI / Honeywell COMPATIBLE INTELLIGENT BASES: — B210LP Standard U.S. flanged low-profile mounting base. — B710LP Standard replacement flanged low-profile mounting base. — B501 Standard European flangeless mounting base. — B200S Intelligent, programmable sounder base — B200SR Intelligent sounder base - Replaces B501BH series bases in retrofit applications. — B224RB Plug-in System Sensor relay base. — B224BI Plug-in System Sensor isolator detector base. NOTE: All base types require an electrical backbox which is at least 1.5" (3.81 cm) deep.
