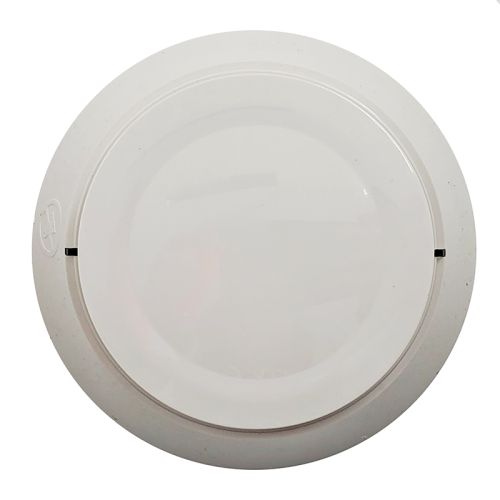

Gamewell FCI ASD-PTL3-IV Photoelectric Smoke Detector w/ Thermal Sensor (Ivory)

The Gamewell FCI ASD-PTL3-IV is a Velociti Series 3 plug-in intelligent addressable multi-sensor detector that combines photoelectric smoke detection with 135°F (57°C) fixed-temperature thermal sensing. It uses rotary decimal switches for Point ID addressing to provide exact device location reporting. The -IV service model is intended for legacy/backwards-compatible installations and operates in both Velociti and CLIP protocol. Key Specifications: Type: Intelligent addressable multi-sensor photoelectric smoke and thermal detector (135°F fixed temperature) Core Function(s): Combined photoelectric smoke and fixed-temperature thermal detection for accurate fire detection. Loop/Protocol: Velociti SLC; Velociti and CLIP Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC; 2 mA max alarm (red LED enabled); 4.5 mA max (amber LED enabled) Indicators/UI: Dual LEDs for 360° visibility; LED blinks when polled and latches in alarm; address set by rotary decimal switches (01–159); local functional test via external magnet Compatible Bases & Accessories: B300-6-IV – Ivory 6-inch standard flanged low profile mounting base B501-IV – Ivory 4-inch flangeless mounting base B200S-IV – Ivory intelligent addressable sounder base B224BI-IV – Ivory isolator detector base B224RB-IV – Ivory relay detector base RA100Z – Remote LED annunciator, 3–32 VDC TR300-IV – Ivory trim ring System Compatibility: Works with E3 Series and S3 Series intelligent fire alarm control panels that support Velociti and/or CLIP protocol on the SLC loop. Note: The GWF-7075 panel does not support the CLIP protocol.
