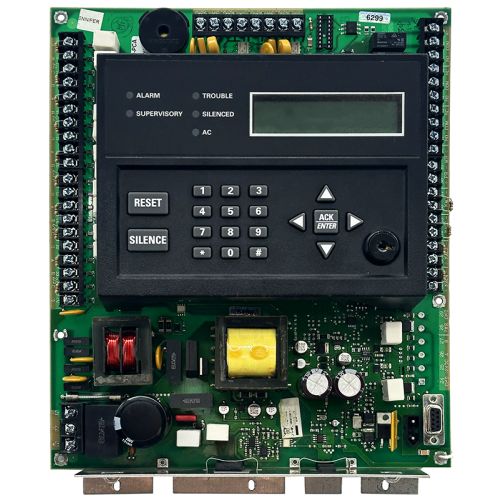

Gamewell FCI Flex 410 (10-Zone FACP) Replacement Board with Lock

The Flex 410 (Refurbished) is the replacement main circuit board for the Gamewell FCI Flex Series 10-zone FACP. It supports ten Class B or five Class A initiating zones, four supervised NACs rated 6 A total with built-in synchronization and ANSI coding, a dual-line DACT for central-station reporting, and 27.4 V auxiliary power with battery charging. Zone capacity can expand to 20 or 30 with GWCZM-400 expanders. Key Specifications: Type: Replacement main circuit board for 10-zone conventional FACP Initiating Device Circuits: 10 Class B (Style B) or 5 Class A (Style D); expandable to 20 or 30 zones using up to two GWCZM-400 zone expanders NAC Circuits: 4 Class B (Style Y) or 2 Class A (Style Z); up to 3 A per output, 6 A total; regulated with single-circuit synchronization and ANSI code patterns; municipal box service and polarity-reversal signaling Communicator: Built-in dual-line DACT with phone-line supervision Aux Power & Charging: 27.4 VDC auxiliary 1 A; charger 27.4 VDC at 0.75 A; supports up to 33 Ah batteries (two 18 Ah fit in the system cabinet) Primary Power / Load: 120 VAC 60 Hz input; total DC load 6 A Programmable Relays: Three Form C (2.5 A inductive, 5 A resistive at 24 VDC) Compatible Modules & Accessories: CZM-400 – Zone expander module (adds 10 Class B or 5 Class A circuits) IOM-410 – Input/Output supervisory status module RAN-400– Remote annunciator (supports up to four per panel) CAB400-A – Accessory cabinet for mounting expanders/modules PLEX-2GA – Dead-front door with clear window
