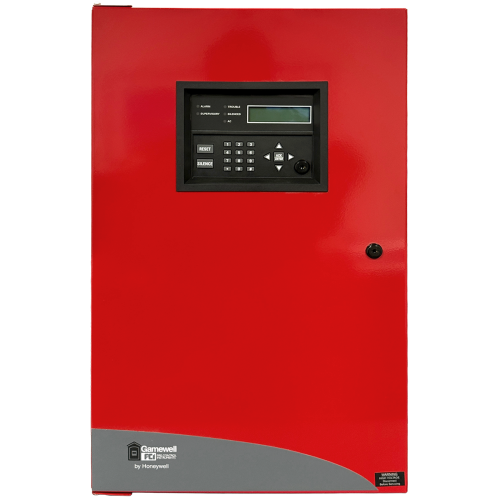

Gamewell FCI Flex 410 (10-Zone FACP) with Cabinet

The Gamewell FCI Flex 410 replacement main circuit board (Refurbished) in cabinet is a complete conventional 10-zone FACP assembly for Flex Series installations, combining the restored main board and factory-style enclosure for faster swap-outs and clean field mounting. It supports 10 Class B or 5 Class A initiating zones, four supervised NAC outputs with built-in sync and ANSI patterns, and a built-in dual-line DACT with battery charging for full panel restoration in one unit. Key Specifications: Type: Conventional 10-zone FACP assembly (refurbished main board mounted in cabinet) Core Function(s): Provides 10-zone conventional fire alarm control with supervised NACs, DACT reporting, and regulated power with battery charging Loop/Protocol: Conventional zones; SBUS support for expanders and remote modules Power: 120 VAC, 60 Hz input; 24 VDC operating; 4 NACs (6 A total, 3 A max per circuit); 27.4 VDC auxiliary 1 A; charger 27.4 VDC at 0.75 A; supports up to 33 Ah batteries (two 18 Ah fit inside the cabinet) Indicators/UI: Two-line LCD with keypad controls Compatible Modules & Accessories: CZM-400 – Zone expander module (adds 10 Class B or 5 Class A circuits) IOM-410 – Input/Output supervisory status module RAN-400 – Remote annunciator (supports up to four per panel) CAB400-A – Accessory cabinet for mounting expanders/modules PLEX-2GA – Dead-front door with clear window System Compatibility: Gamewell FCI Flex Series conventional systems using the Flex 410 platform Alternate Part Numbers: GWF410
