Honeywell HPFF12 Power Supply Assembly Replacement

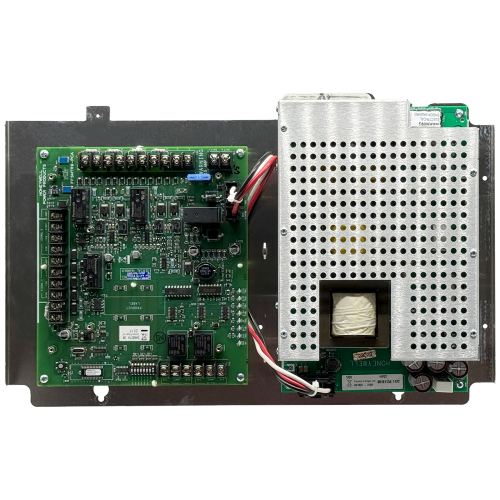

The Honeywell HPFF12 Power Supply Assembly Replacement (Refurbished) is the internal replacement power supply assembly for the Honeywell HPFF12 NAC expander cabinet. It is used to restore the four supervised 24 VDC NAC outputs, continuous auxiliary power output, and onboard charging functions of the HPFF12, with the power supply and main board mounted side by side as used in the cabinet version. Key Specifications: Type: Refurbished replacement power supply assembly for HPFF12 cabinet Core Function(s): Restores NAC expansion, auxiliary 24 VDC power, battery charging, and output supervision in the HPFF12 Power: 120 VAC, 60 Hz input; 24 V operation with standby batteries NAC Circuits: Four supervised NAC outputs, 3.0 amps max each, 12.0 amps combined Auxiliary Output: 2.0 amps continuous Circuit Configuration: Four Class B, two Class A, or two Class B and one Class A; up to four Class A with HPP31076 Operating Modes: Pass-through, Temporal generator, Sync generator, and Pass-through Filtered Synchronization: Built-in sync support for System Sensor, Faraday, Amseco, Cooper-Wheelock, and Gentex appliances Indicators/UI: Eight status LEDs with trouble memory by NAC Battery Capacity: Internal charger supports up to 26 AH batteries Operating Range: 32 F to 120 F; 10 to 93 percent non-condensing Compatible Modules & Accessories: HPP31076 - Class A adapter for expanding from two to four Class A NACs CMF-300 - Supervised addressable control module System Compatibility: Replacement assembly for the Honeywell HPFF12 NAC Expander Power Supply cabinet version.
