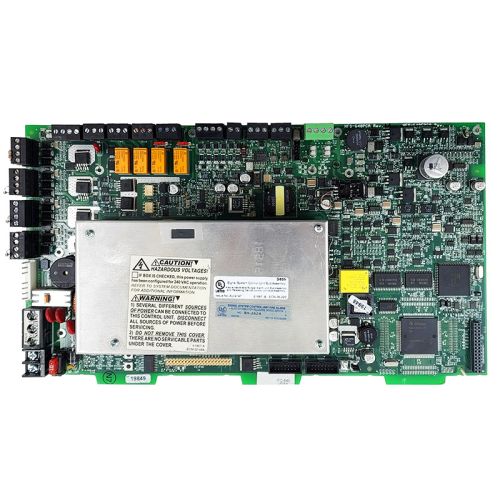

Johnson Controls IFC-640 (Intelligent FACP) Replacement Board
$2,200.00
This is the Replacement Board for the Johnson Controls IFC-640 Modular Intelligent Fire Alarm Control Panel (FACP).
FEATURES and SPECS:
— One, expandable to two, isolated intelligent Signaling Line Circuit (SLC) Style 4, 6 or 7.
— Up to 159 detectors (any mix of ion, photo, thermal, or multi-sensor) and 159 modules (N.O. manual stations, two-wire smoke, notification, or relay) per SLC. 318 devices per loop/636 per FACP or network node.
— Utilizes Flashscan communications protocol.
— Standard 80-character display, 640-character large display, or display-less (a node on a network).
— Network option – 103 nodes supported (IFC-640, JNCA Network Annunciator, or IFW Network Control Station).
— 6.0 amp switch mode power supply with four Class A/B built in Notification Appliance Circuits (NAC). Selectable System
Sensor strobe synchronization.
— Built-in Alarm, Trouble, and Supervisory relays.
— Up to 64 output circuits per FACP or network node; circuits configurable online.
