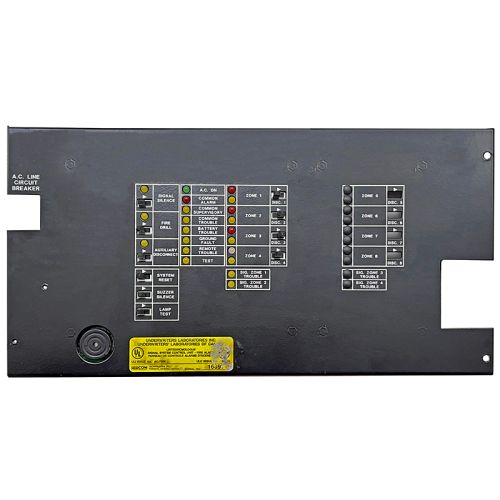

Mircom FA-204 (4-Zone FACP) Replacement Board

This is the replacement board for the Mircom FA-204 (4-Zone FACP). FEATURES and SPECIFICATIONS — Four supervised Style B (Class B) or 2 Style D (Class A) initiating circuits; configurable. [Compatibility ID “A”] Power limited:26VDC, 3 mA standby, 1.5Vp-p ripple, 50 mA max. (alarm) — Two Class A/B (Style Y/ Z) indicating circuits; configurable as strobes or audibles. Power limited:24 VDC unfiltered — 1.7 A @ 49°C per circuit (5A total) — One (DM-204) Zone Adder Module may be added. — Initiating circuit disconnect switches. — Optional DACT (DACT-100A) or city tie adder module (PR-100). — Optional RM-204 / RM-208 Relay Module. — Resettable four-wire smoke supply. Power limited: 28VDC, 100mA max, 1.5Vp-p ripple — Aux power supply. — Power limited: 24VDC, 300mA max, unfiltered — for RTI or Remote Annunciators — 1 RS-485 connection for up to 3 RAM-208 Remote Annunciators. — 1 RTI interface for connection to an RTI Remote Trouble Indicator.
