Notifier ARM-4 Auxiliary Relay Module

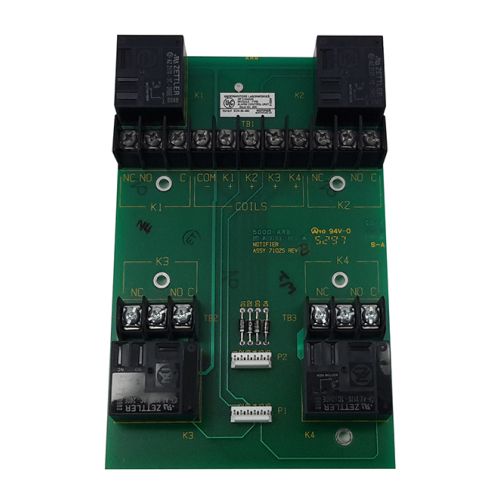

Notifier ARM-4 Auxiliary Relay Module is intended for use with NOTIFIER System 5000, AFC-600, AFP-400, or AFP-300 FACPs. The ARM-4 Auxiliary Relay Module is used for high power switching and may be slaved to a CRM-4 or CRE-4 module. The Notifier ARM-4 Auxiliary Relay Module contains four Form-C relays controlled by a relay module (CRM-4 or CRE-4). N.O. contacts rated 20 amps, N.C. contacts rated 10 amps at 125 VAC and 30 VDC (maximum of one for each CRM-4 or CRE-4). Mounts on the rear of the CHS-4 chassis (adjacent to the controlling CRM-4/CRE-4), and may be located under a IZM-8 or AIM-200 (System 5000 only), ICM-4, or CRM-4 (with or without expanders).
