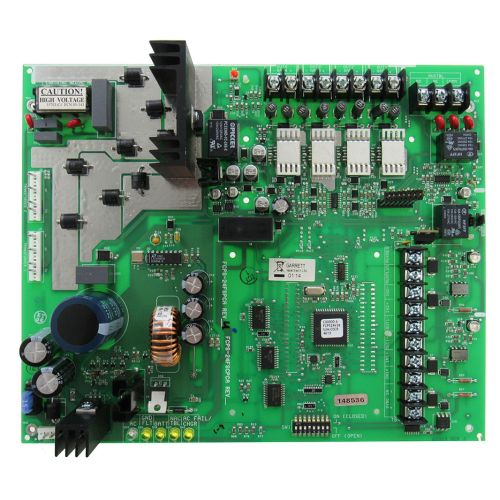

Notifier / Fire-Lite FCPS-24 Power Supply Replacement Board, New Style

The Notifier / Fire-Lite FCPS-24 Power Supply Replacement Board, New Style (Refurbished) is the main replacement PCB used to restore the regulated 24 VDC NAC expansion, auxiliary power, and battery-charger functions of the FCPS-24 family remote power supplies. It supports four output circuits that can be used for NAC expansion (including strobe sync follower or sync generator modes) or as resettable/non-resettable 24 VDC outputs depending on configuration. Note: The Notifier / Fire-Lite FCPS-24 Power Supply is 6 amps with 1 transformer added to the board, or 8 amps with 2 transformers added. Key Specifications: Type: Refurbished replacement PCB for FCPS-24 “new style” remote power supply / battery charger assemblies Core Function(s): Provides filtered, regulated 24 VDC power for NAC expansion or auxiliary 24 VDC outputs, with on-board battery charging Power: 24 VDC filtered/regulated outputs; trigger input 9 to 32 VDC; up to 3.0 A per output circuit; total output varies by 6 A vs 8 A configuration and operating mode Indicators/UI: Form-C trouble relay; selectable earth fault detection; selectable strobe synchronization modes (sync follower or sync generator) Compatible Modules & Accessories: ZNAC-4 – Class A (Style Z) NAC option module Replacement For: Fire-Lite FCPS-24FS6 and FCPS-24FS8 (New Style) Notifier FCPS-24S6 and FCPS-24S8 (New Style)
