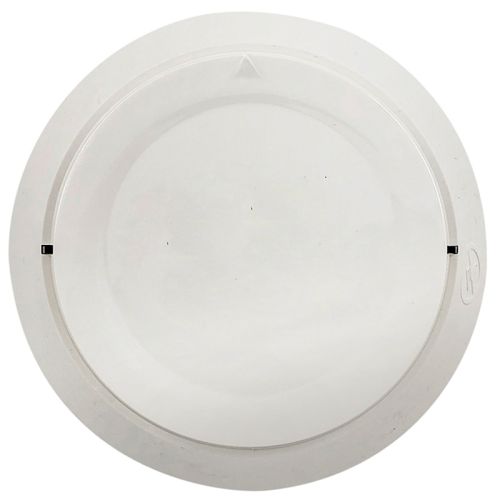

Notifier FSCO-951 Addressable Carbon Monoxide Detector (White)

The Notifier FSCO-951 is an intelligent addressable carbon monoxide detector for Notifier SLC loops using FlashScan protocol. This detector uses rotary decimal switches for device addressing and is for use with FlashScan protocol devices. FSCO-951 is recommended for use with B200S series intelligent sounder bases for CO alarm signaling. Key Specifications: Type: Intelligent addressable carbon monoxide detector Core Function(s): Provides addressable detection of carbon monoxide. Loop/Protocol: Notifier SLC; FlashScan only Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC, 2 mA in alarm at 24 VDC (red LED on), 4.5 mA maximum at 24 VDC Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet Compatible Bases & Accessories: B200S-WH – White, intelligent programmable sounder base B200S-LF-WH – White, low frequency intelligent programmable sounder base B300-6 – White, 6 inch standard flanged low profile mounting base B501-WH – White, 4 inch standard European flangeless mounting base B224RB-WH – White relay detector base B224BI-WH – White isolator detector base RA100Z – Remote LED annunciator System Compatibility: Works with Notifier intelligent fire alarm control panels that support FlashScan protocol on the SLC loop. Compatible FACPs (FlashScan): NFS2-3030 (firmware v27.0 or higher); NFS2-640 and NFS-320 (firmware v27.01 or higher).
