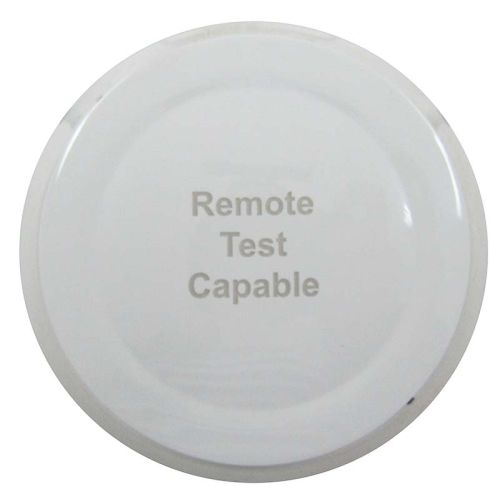

Notifier FSP-951R Photoelectric Smoke Detector Head (White)

The Notifier FSP-951R is an intelligent addressable photoelectric smoke detector head with remote test capability for Notifier SLC loops using FlashScan protocol. Notifier FSP-951R is suitable for use with DNR and DNRW duct detector housings and uses rotary decimal switches for device addressing, with sensitivity programmed in the control panel software. It replaces the Notifier FSP-851R Series and uses FlashScan protocol devices. Key Specifications: Type: Intelligent addressable photoelectric smoke detector head Core Function(s): Provides addressable photoelectric smoke detection for duct applications. Loop/Protocol: Notifier SLC; FlashScan only Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC, 4.5 mA in alarm (LED on). Max current 4.5 mA @ 24 VDC (“ON”) Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet Compatible Bases & Accessories: B300-6 – White, 6 inch standard flanged low profile mounting base B501-WH – White, 4 inch standard European flangeless mounting base B200S-WH – White, intelligent programmable sounder base B224RB-WH – White relay detector base B224BI-WH – White, isolator detector base RA100Z – Remote LED annunciator System Compatibility: Works with Notifier intelligent fire alarm control panels that support FlashScan protocol on the SLC loop.
