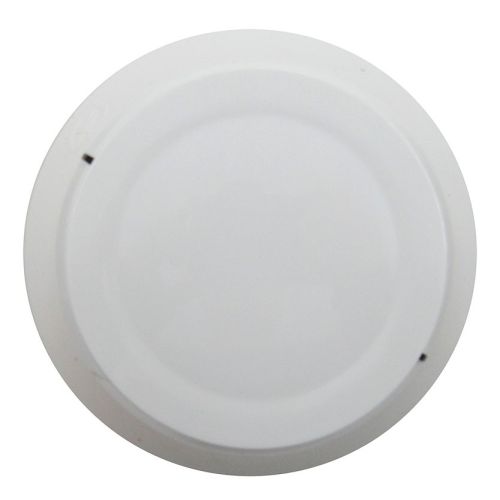

Notifier FSV-951R Very Intelligent Early Warning (VIEW) Detector (White)

The Notifier FSV-951R (VIEW) is an intelligent high sensitivity photoelectric smoke detector for very early warning fire detection on Notifier SLC loops using FlashScan protocol. It uses a refined smoke sensing chamber and patented optic block to amplify real smoke signals while reducing internal reflections that can cause false alarms. FSV-951R (VIEW) is UL listed for open area and duct applications in DNR/DNRW housings, uses rotary decimal switches for addressing with remote test capability, and replaces the legacy FSL-751 laser detector. Key Specifications: Type: Very Intelligent Early Warning (VIEW) photoelectric smoke detector Core Function(s): Provides very early warning photoelectric smoke detection with ultra high sensitivity (0.02 to 2.0 %/ft obscuration) to protect critical equipment while minimizing nuisance alarms. Loop/Protocol: Notifier SLC; FlashScan only Power: 15 to 32 VDC from SLC; 300 μA standby at 24 VDC, 2 mA alarm current at 24 VDC, 4.5 mA maximum at 24 VDC Indicators/UI: Dual LEDs provide 360° status indication, blinking in communication and latching in alarm; address set by rotary decimal switches; local functional test via external magnet and panel-initiated self diagnostics Compatible Bases & Accessories: B300-6 - White, 6 inch standard flanged low profile mounting base B501-WH - White, 4 inch standard European flangeless mounting base B200S-WH - White, intelligent programmable sounder base B224RB-WH - White relay detector base B224BI-WH - White isolator detector base RA100Z - Remote LED annunciator System Compatibility: Works with Notifier intelligent fire alarm control panels that support FlashScan protocol on the SLC loop.
