Notifier N-ANN-80-W Annunciator

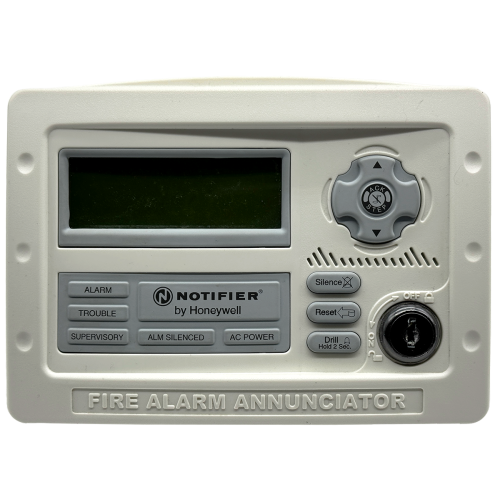

The Notifier N-ANN-80-W is an 80-character (4x20) backlit LCD annunciator that mirrors the host FACP display. It connects to the panel over the two-wire ANN-Bus with separate 24 VDC power, provides front-panel keyswitch controls for Acknowledge, Signal Silence, Drill, and Reset, shows status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced, and can be located up to 6,000 ft from the panel. Up to eight N-ANN-80-W units may be used per FACP. Key Specifications: Display: Backlit LCD, 80 characters (20x4) Bus/Capacity: ANN-Bus; up to 8 annunciators per panel Operating voltage: 18–28 VDC; 40 mA max at 24 VDC Power source: From host FACP or remote filtered 24 VDC supply Mounting: Surface mount (wall or single/double/4 in. square box) or semi-flush; angled view with ANN-SB80KIT Max distance: Up to 6,000 ft from the panel Color: White Optional Accessories (White): ANN-SB80KIT-W – Surface-mount backbox with angled wedge
