Notifier NH-100 Intelligent Addressable Thermal Detector
$109.00
NOTE: This part is discontinued by the manufacturer. Replace with: NH-200(white) or NH-200-IV(ivory)

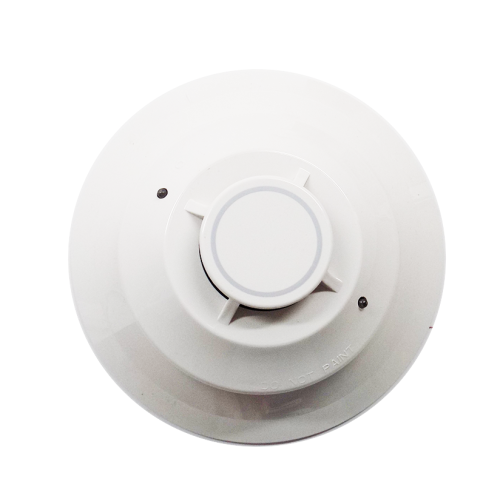

The Notifier NH-100 Intelligent Addressable Thermal Detector is a plug-in, fixed high-temperature detector that activates at 135°F (57°C).
Two-wire SLC loop connection; addressable by device.
Designed for use with Notifier's FireWarden Series (FireWarden-100-2 and FireWarden-50) and Spartan (NSP-25) addressable Fire Alarm Control Panels.
COMPATIBLE INTELLIGENT BASES:
— B210LP Standard U.S. flanged low-profile mounting base.
— B710LP Standard replacement flanged low-profile mounting base.
— B501 Standard European flangeless mounting base.
— B200S: Intelligent, programmable sounder base
— B200SR Intelligent sounder base - Replaces B501BH series bases in retrofit applications.
— B224RB Plug-in System Sensor relay base.
— B224BI Plug-in System Sensor isolator detector base.
NOTE: All base types require an electrical backbox which is at least 1.5" (3.81 cm) deep.
NOTE: The Notifier NH-100 comes with B210LP Detector Base INCLUDED.
