Notifier NH-100R Intelligent Addressable Thermal Detector
$200.00
NOTE: This part is discontinued by the manufacturer. Replace with: NH-200R(white) or NH-200R-IV(ivory)

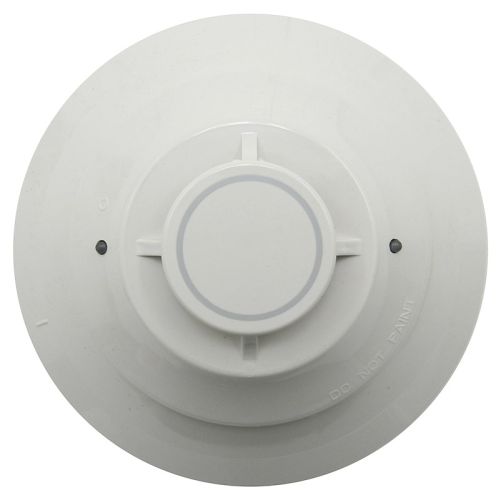

The Notifier NH-100R Intelligent Addressable Thermal Detector is a plug-in, fixed high-temperature detector that activates at 135°F (57°C).
Rate-of-rise detection: responds to greater than 15°F (8.3°C) per minute.
Two-wire SLC loop connection; addressable by device
Designed for use with Notifier's FireWarden Series (FireWarden-100-2 and FireWarden-50) and Spartan (NSP-25) addressable Fire Alarm Control Panels.
COMPATIBLE INTELLIGENT BASES:
—B210LP Standard U.S. flanged low-profile mounting base.
—B710LP Standard replacement flanged low-profile mounting base.
—B501 Standard European flangeless mounting base.
—B200S: Intelligent, programmable sounder base
—B200SR Intelligent sounder base - Replaces B501BH series bases in retrofit applications.
—B224RB Plug-in System Sensor relay base.
—B224BI Plug-in System Sensor isolator detector base.
NOTE: All base types require an electrical backbox which is at least 1.5" (3.81 cm) deep.
NOTE: The Notifier NH-100R comes with B210LP Detector Base INCLUDED.
