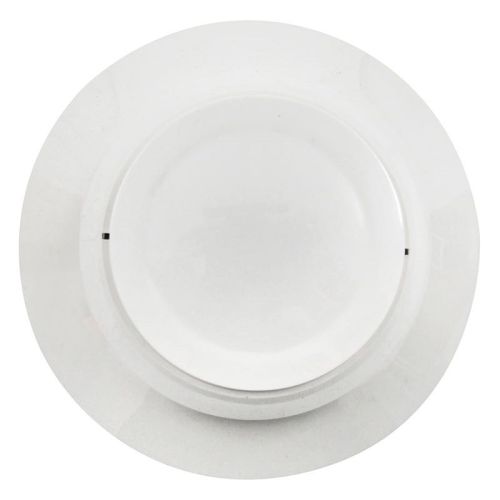

Notifier NP-200 Photoelectric Smoke Detector (White)

The Notifier NP-200 is an intelligent addressable plug in photoelectric smoke detector exclusively for use with Notifier FireWarden Series addressable fire control panels using FlashScan protocol. The Notifier NP-200 includes a B300-6 detector base. It uses rotary decimal switches for Point ID addressing and has dual LEDs for visible sensor indication, with an enhanced optical sensing chamber designed to respond to a wide range of common smoke conditions. Key Specifications: Type: Intelligent addressable photoelectric smoke detector Core Function(s): Provides addressable photoelectric smoke detection using an enhanced optical sensing chamber. Loop/Protocol: Notifier SLC; FlashScan only Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC; 4.5 mA max @ 24 VDC (“ON”) Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet; dual LEDs for visible indication Compatible Bases & Accessories: B300-6 – White, 6 inch standard flanged low profile mounting base B501-WH – White, 4 inch standard European flangeless mounting base B200S-WH – White intelligent programmable sounder base B224BI-WH – White isolator detector base B224RB-WH – White relay detector base RA100Z – Remote LED annunciator TR300 – White replacement flange (trim ring) System Compatibility: Exclusively for Notifier FireWarden Series addressable fire alarm control panels using FlashScan protocol.
