Notifier TM-4 Transmitter Module

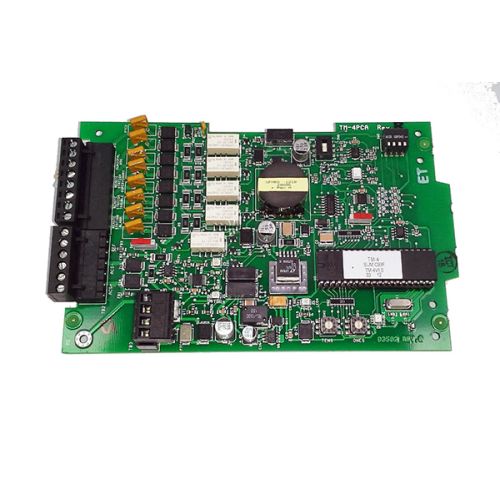

The Notifier TM-4 is a transmitter module for ONYX Series panels and NCA annunciators that provides remote station signaling through either three reverse-polarity outputs or one fire municipal box trip on a single board. It mounts on CHS Series chassis or in panel module locations and is designed for auxiliary and remote station protective signaling applications. Key Specifications: Type: Transmitter module Core Function(s): Transmits alarm, trouble, and supervisory conditions to a remote station, or operates a municipal box trip output Loop/Protocol: Communicates with the control panel over the ACS EIA-485 serial interface Power: 18.0 to 31.0 VDC input; 24 VDC nominal; 165 mA power requirement; 175 mA maximum current draw at 24 VDC Outputs: Three isolated reverse-polarity outputs rated 15 mA each, or one municipal box trip output Indicators/UI: Green Power LED, green RX ACS LED, green TX ACS LED, yellow Trouble LED, ACS address switches, Disable All Outputs switch, and configuration DIP switches Mounting: Mounts on CHS-M2, CHS-M3, CPU2-640, CHS-4N, or CHS-4L chassis, on a BMP-1 blank plate, or in an ABS-8R cabinet Municipal Box Trip: 0.35 A trip current; 3.65 VDC coil voltage; 3.0 ohms maximum wire resistance System Compatibility: Compatible with Notifier NFS2-3030, NFS-3030, NFS2-640, NFS-640, and NFS-320 fire alarm control panels, plus NCA-2 and NCA network control annunciators.
