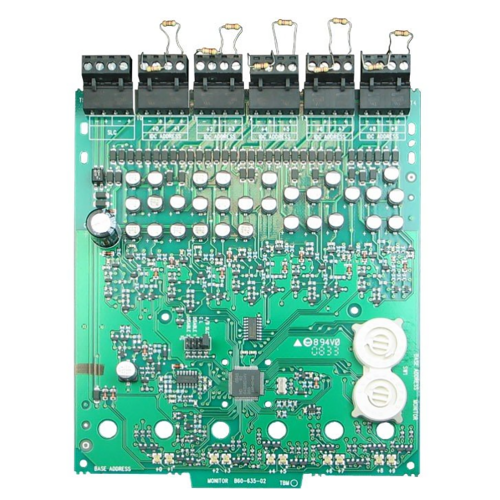

Notifier XP10-M Ten Input Monitor Module

The Notifier XP10-M is an intelligent addressable ten-input monitor module for Notifier systems that interfaces normally open contact devices such as manual call points, fire fan control contacts, and flow switches to the SLC. The first address is set from 01 to 150, with the remaining nine inputs automatically assigned to the next higher addresses, and up to two unused addresses can be disabled. Key Specifications: Type: Intelligent addressable ten-input monitor module Core Function(s): Monitors up to ten normally open contact initiating device circuits and reports normal, open, or short conditions to the panel Loop/Protocol: Notifier SLC; FlashScan or CLIP operation Power: 3.5 mA standby current with all addresses used; 55 mA alarm current with all ten LEDs solid on Indicators/UI: Panel-controlled green LED indicators for each point; LEDs can blink, latch on, or latch off Circuit Style: Ten initiating device circuits sharing a common supervisory supply and ground, with each monitor operating independently Addressing: First address set from 01 to 150; remaining nine addresses automatically assigned; maximum of two unused addresses may be disabled Wiring: Removable plug-in terminal blocks; 0.75 mm2 to 1.5 mm2 wire range Wiring Limits: Maximum SLC wiring resistance 40 ohms; maximum IDC wiring resistance 1500 ohms; maximum IDC voltage 10.2 VDC; 47K ohm EOL resistor Mounting: Flexible mounting options; mounting hardware included System Compatibility: Works with compatible Notifier intelligent fire alarm control panels that support FlashScan or CLIP operation on the SLC loop.
