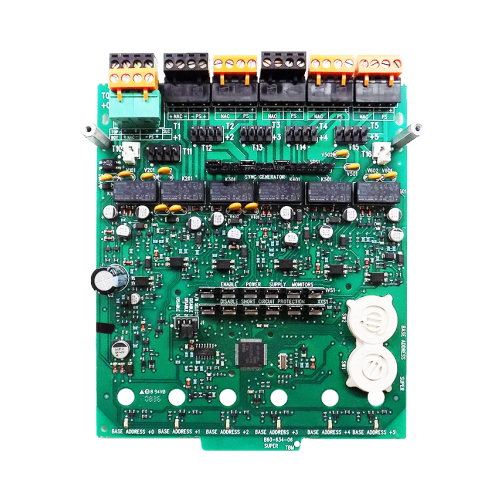

Notifier XP6-C Six-Circuit Supervised Control Module

The Notifier XP6-C (Refurbished) is an intelligent addressable six-circuit supervised control module for Notifier systems that monitors and switches external power to notification appliance, speaker, or telephone circuits. The first circuit is addressed from 01 to 154, while the remaining five circuits are automatically assigned to the next five higher addresses, and the module supports six Style B or three Style D outputs. Key Specifications: Type: Intelligent addressable six-circuit supervised control module Core Function(s): Supervises and switches external power to notification appliance, speaker, or telephone circuits Loop/Protocol: Notifier SLC; FlashScan or CLIP operation Power: 2.25 mA standby current with all addresses used; 35 mA alarm current with all six circuits switched and all six LEDs solid on Circuit Style: Six Style B (Class B) or three Style D (Class A) outputs Ratings: Up to 50 W per circuit at 70.7 VAC or 25 VAC; 3.0 A at 30 VDC resistive non-coded; 2.0 A at 30 VDC resistive coded Protection Features: Short-circuit-protection monitor helps protect the external power supply and identifies shorted NAC circuits while active Indicators/UI: Panel-controlled green LED indicators for each point; LEDs can blink, latch on, or latch off; rotary address switches Wiring: Removable plug-in terminal blocks; 12 AWG to 18 AWG Mounting: Ships in Class B position; remove shunt for Class A operation. Mounting hardware included Compatible Accessories: SYNC-1 - Optional accessory card for synchronization of compatible System Sensor SpectrAlert and SpectrAlert Advance horns, strobes, and horn/strobes BB-XP - Optional cabinet for one or two modules BB-25 - Optional cabinet for up to six modules CHS-6 - Chassis for mounting up to six modules in CAB-3 Series, CAB-4 Series, EQ Series, or BB-25 cabinets System Compatibility: Works with compatible Notifier intelligent fire alarm control panels that support FlashScan or CLIP protocol on the SLC loop. Compatible device support should be confirmed against the panel documentation and the Notifier Device Compatibility document.
