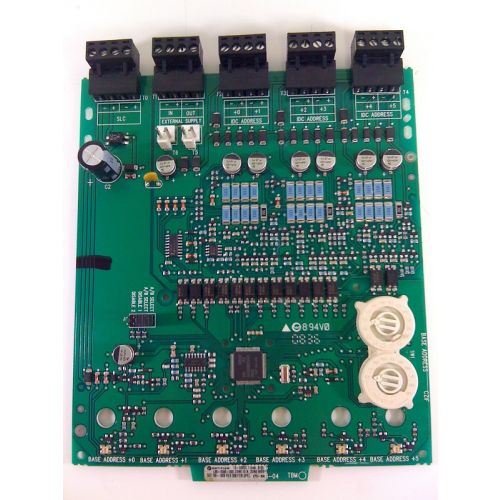

Notifier XP6-MA Six Zone Interface Module

The Notifier XP6-MA is an intelligent addressable six-zone interface module for Notifier systems that provides an interface between the SLC and conventional two-wire detection zones. It uses one common SLC input for all six zones, requires a separate external supervisory power supply, and reports normal, open, or alarm conditions back to the fire alarm control panel. Key Specifications: Type: Intelligent addressable six-zone interface module Core Function(s): Interfaces six conventional two-wire detector zones to the SLC and supervises both the detector zones and the external power supply connection Loop/Protocol: Notifier SLC; FlashScan or CLIP operation Power: SLC standby current 2.20 mA max with all addresses used; external supply 18 to 28 VDC, power-limited; 90 mA maximum per address in alarm Indicators/UI: Panel-controlled bicolor LED indicators for each point; LEDs can blink, latch on, or latch off; rotary address switches Zone Capacity: Six addressable initiating device circuits; first address set from 01 to 154 with the remaining five zones automatically assigned to the next higher addresses Wiring: Removable plug-in terminal blocks; 0.75 mm2 to 1.5 mm2 wire range Wiring Limits: Maximum IDC wiring resistance 25 ohms; maximum SLC wiring resistance 40 or 50 ohms depending on panel Mounting: Mounting hardware included Operating Range: -10 C to +55 C; 10% to 93% non-condensing humidity System Compatibility: Works with compatible Notifier intelligent fire alarm control panels that support FlashScan or CLIP protocol on the SLC loop.
