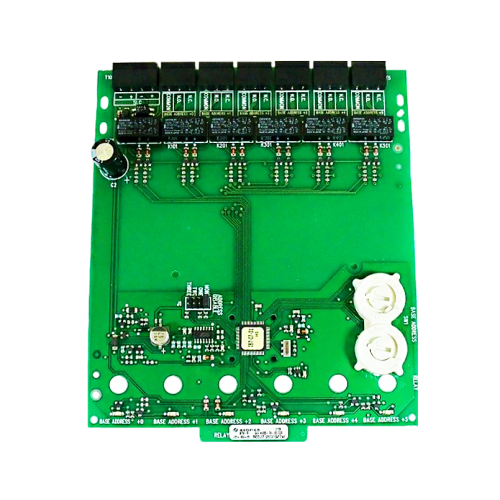

Notifier XP6-R Six Relay Control Module

The Notifier XP6-R is an intelligent addressable six-relay control module for Notifier systems that provides six Form C dry-contact relays. The first address is set from 01 to 154, while the remaining five relays are automatically assigned to the next higher addresses, and up to three unused addresses can be disabled. Key Specifications: Type: Intelligent addressable six-relay control module Core Function(s): Provides six Form C dry-contact relay outputs for panel-controlled switching of auxiliary circuits Loop/Protocol: Notifier SLC; FlashScan or CLIP operation Power: 1.45 mA standby current with all addresses used; 32 mA alarm current with all six relays switched once and all six LEDs solid on Relay Output: Six Form C dry contacts, each capable of normally open or normally closed operation Ratings: 30 VDC or 70.7 VAC; 3.0 A at 30 VDC resistive non-coded; 2.0 A at 30 VDC resistive coded; 0.9 A at 110 VDC resistive non-coded; 0.9 A at 125 VAC resistive non-coded Indicators/UI: Panel-controlled green LED indicators for each point; LEDs can blink, latch on, or latch off; rotary address switches Wiring: Removable plug-in terminal blocks; 0.75 mm2 to 1.5 mm2 Wiring Limits: Maximum SLC wiring resistance 40 or 50 ohms, panel dependent Mounting: Mounting hardware included Operating Range: 0 C to 49 C; 10% to 85% noncondensing humidity System Compatibility: Works with compatible Notifier intelligent fire alarm control panels that support FlashScan or CLIP protocol on the SLC loop.
