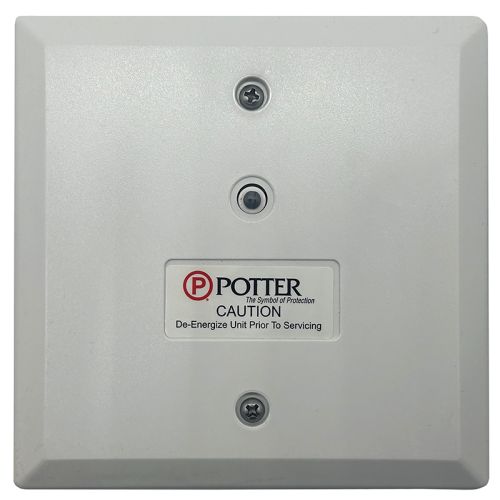

Potter PAD100-RM Relay Module

The Potter PAD100-RM uses one (1) SLC loop address to provide one (1) Form C relay contact. The module mounts on either a 4” square or double gang box. Operating Voltage 24.0V The PAD100-RM includes one red LED to indicate the module’s status. In normal condition, the LED flashes when the device is being polled by the control panel. The PAD100-RM is compatible with Potter’s IPA and AFC/ARC series addressable fire alarm control panels. Each addressable SLC device must be assigned an address. The address is set using the DIP switch located on the PAD100-RM. The PAD100-RM uses a single device address to identify relay contacts.
